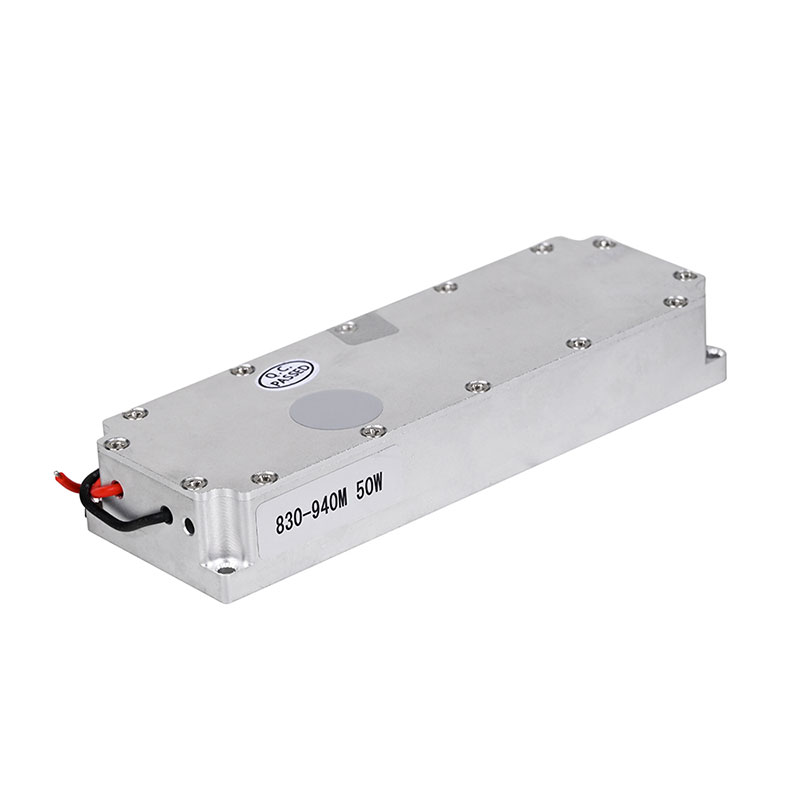

50W 830-940MHz RF Module
  • 50W 830-940MHz RF Module50W 830-940MHz RF Module
  • 50W 830-940MHz RF Module50W 830-940MHz RF Module
  • 50W 830-940MHz RF Module50W 830-940MHz RF Module
  • 50W 830-940MHz RF Module50W 830-940MHz RF Module
  • 50W 830-940MHz RF Module50W 830-940MHz RF Module
  • 50W 830-940MHz RF Module50W 830-940MHz RF Module

50W 830-940MHz RF Module

FZX's 50W 830-940MHz RF Module is a critical component in our anti-drone arsenal, focusing on the GPS and WiFi frequencies that drones depend on. This module is a key part of our strategy to ensure secure airspace by disrupting drone navigation and communication.

Send Inquiry

Product Description

As the misuse of drones becomes increasingly widespread, the 50W 830-940MHz Drone UAV GPS Jammer Module stands as a necessary defense mechanism to address unauthorized drone operations. By disrupting the essential GPS and WiFi frequencies required for drone communication and navigation, this module serves as a cornerstone in enhancing airspace security. Renowned for its stability and reliability, the module has received acclaim for its effectiveness in combating unauthorized drone activities. Additionally, our dedication to providing technical support and top-quality after-sales service ensures the seamless integration and optimal performance of the drone jammer in upholding airspace safety.

50W 830-940MHz RF Module Parameter

Project Index Unit Remark
Frequency Range 830-940 MHz Customers can customize the frequency
Operating Voltage 28 V 28-32V
Maximum output power 47±0.5 dBm 50W@≤3.5A
Gain 42±1 dB Peak-to-peak
In-band fluctuations ≤2 dB Peak-to-peak
Spurious emissions Within work zone ≤-15dBm/1MHz dBm Center frequency plus CW signal to maximum
Output power time measurement
Outside work zone 9KHz~1GHz No higher than normal noise floor clutter dBm
1G~12.75GHz dBm
Output voltage standing wave ratio ≤1.30 Without power, standard network output -10dBm
≤1.30 Power Up, Dual Directional Coupler Test
High and low temperature test Working temperature -10~+55 Low temperature can start
Gain stability ±1.5 @-40℃~+55℃ dB
Power stability ±1 @-40℃~+55℃ dB
Power supply requirements ≥4A@+28Vdc; Continuous wave output 50W
Power supply interface Power cord red positive black negative red positive black negative
RF output connector SMA SMA external screw female seat
Electric current ≤3.5 A
Size 60*150*21.5 mm
Weight 0.16 Kg

50W 830-940MHz RF Module Feature And Application


The 50W 830-940MHz RF Module aims to disrupt drone operations by emitting targeted radio frequencies, enforcing safety measures, and safeguarding specific areas from potential drone-related threats. As a core component of drone countermeasure systems, these modules play crucial roles:


Communication Disruption: By transmitting signals on drone control frequencies, the RF module interrupts the communication link between the drone and its operator, potentially leading to loss of control and activation of safety protocols.

Navigation Interference: By emitting interference signals that affect GPS reception, the RF module disrupts the drone's navigation system, resulting in positioning inaccuracies and flight limitations.

Forced Landing or Return: Through interference with communication and navigation, the RF module can compel the drone to execute safety procedures such as immediate landing or returning to the takeoff point.

Prevention of Unauthorized Activities: In sensitive areas or events, the RF module serves as a deterrent against unauthorized drone operations, enhancing privacy and security.

Protection of Critical Infrastructure: Deployment of RF modules around military bases, government facilities, airports, and critical infrastructure guards against unauthorized drone intrusions, mitigating security risks.

Ensuring Airspace Safety: During public events or emergencies, the RF module ensures airspace safety by preventing drone interference with aviation operations or rescue missions.
