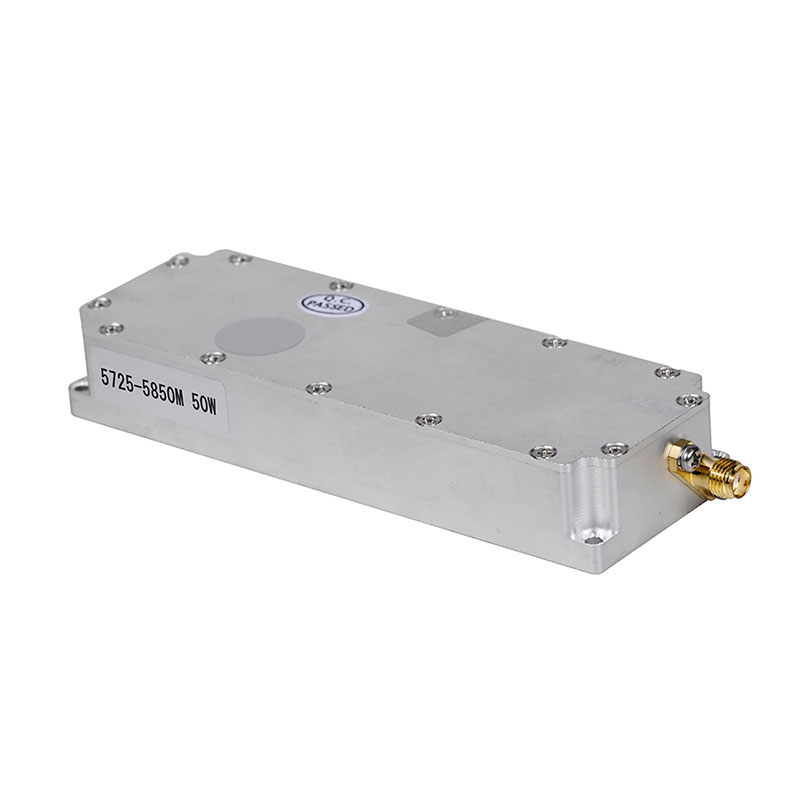

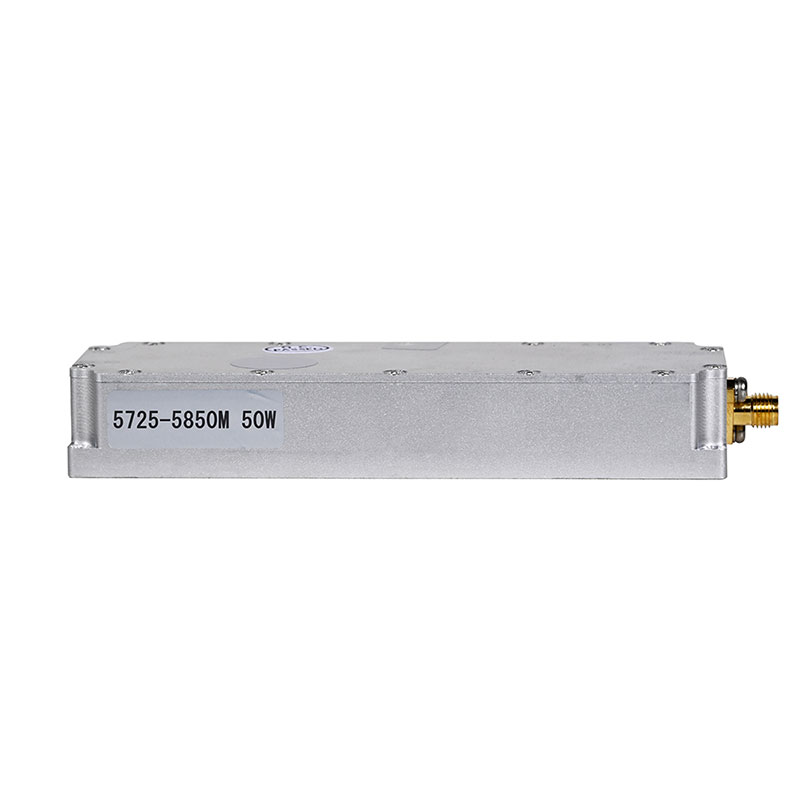

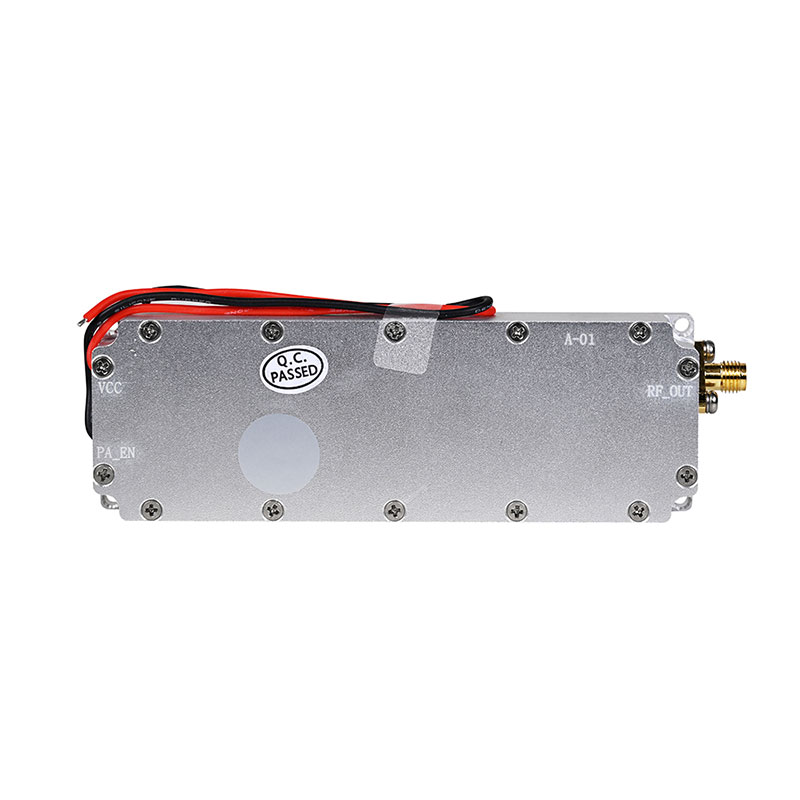

50W 5725-5850MHz RF Module
  • 50W 5725-5850MHz RF Module50W 5725-5850MHz RF Module
  • 50W 5725-5850MHz RF Module50W 5725-5850MHz RF Module
  • 50W 5725-5850MHz RF Module50W 5725-5850MHz RF Module
  • 50W 5725-5850MHz RF Module50W 5725-5850MHz RF Module
  • 50W 5725-5850MHz RF Module50W 5725-5850MHz RF Module
  • 50W 5725-5850MHz RF Module50W 5725-5850MHz RF Module

50W 5725-5850MHz RF Module

FZX's 50W 5725-5850MHz RF Module is a specialized anti-drone technology, designed to counteract the GPS and WiFi frequencies that are integral to drone functionality. This module is a key element in our efforts to protect against drone-related security breaches, ensuring that drone operations can be effectively monitored and controlled.

Send Inquiry

Product Description

As the misuse of drones continues to pose risks to airspace safety and regulatory compliance, the need for effective anti-drone solutions is paramount. The 50W 5725-5850MHz Drone UAV GPS Jammer Module plays a crucial role in addressing these challenges by disrupting the GPS and WiFi frequencies utilized by drones. This module is instrumental in enhancing airspace security measures and curbing unauthorized drone activities. Its proven stability and performance, coupled with dedicated technical support and exceptional after-sales service, make it a reliable and indispensable tool in anti-drone operations.

50W 5725-5850MHz RF Module Parameter

Project Index Unit Remark
Frequency Range 5725-5850 MHz Customers can customize the frequency
Operating Voltage 28 V 28-32V
Maximum output power 47±0.5 dBm 50W@≤3.5A
Gain 42±1 dB Peak-to-peak
In-band fluctuations ≤2 dB Peak-to-peak
Spurious emissions Within work zone ≤-15dBm/1MHz dBm Center frequency plus CW signal to maximum
Output power time measurement
Outside work zone 9KHz~1GHz No higher than normal noise floor clutter dBm
1G~12.75GHz dBm
Output voltage standing wave ratio ≤1.30 Without power, standard network output -10dBm
≤1.30 Power Up, Dual Directional Coupler Test
High and low temperature test Working temperature -10~+55 Low temperature can start
Gain stability ±1.5 @-40℃~+55℃ dB
Power stability ±1 @-40℃~+55℃ dB
Power supply requirements ≥4A@+28Vdc; Continuous wave output 50W
Power supply interface Power cord red positive black negative red positive black negative
RF output connector SMA SMA external screw female seat
Electric current ≤4 A
Size 60*150*21.5 mm
Weight 0.16 Kg

50W 5725-5850MHz RF Module Feature And Application

The drone countermeasure RF module (Radio Frequency module) serves to disrupt drones' communication and navigation systems by emitting specific radio frequencies, hindering their normal operations. These modules are essential elements of drone countermeasure systems, fulfilling key functions:

- **Communication Interference**: Transmitting on drone control frequencies, the RF module disrupts communication between the drone and its operator, potentially leading to control loss and safety protocol activation.

- **Navigation Disruption**: Emitting interference signals affecting GPS reception, the RF module disrupts the drone's navigation system, causing inaccuracies in positioning and flight capabilities.

- **Forced Landing or Return**: By disrupting communication and navigation, the RF module can prompt the drone to execute safety procedures, such as immediate landing or return to the initial point.

- **Prevention of Unauthorized Activities**: Acting as a deterrent in sensitive areas or events, the RF module inhibits unauthorized drone activities, enhancing privacy and security.

- **Protection of Critical Infrastructure**: Deployment of RF modules around military bases, government facilities, airports, and critical infrastructure safeguards against unauthorized drone intrusions, reducing security risks.

- **Ensuring Airspace Safety**: In public gatherings or emergencies, the RF module maintains airspace safety by preventing drone interference with aviation operations or rescue missions.

In summary, the drone countermeasure RF module disrupts drone operations using specific radio frequencies, enforces safety measures, and safeguards designated areas from potential drone-related risks.
