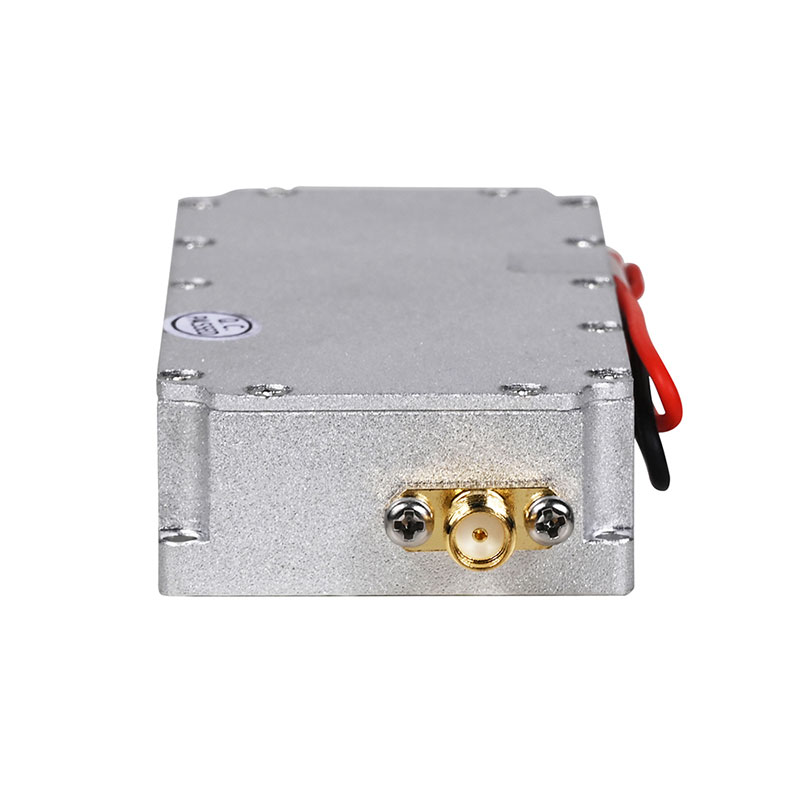

10W 840-930MHz RF Module
  • 10W 840-930MHz RF Module10W 840-930MHz RF Module
  • 10W 840-930MHz RF Module10W 840-930MHz RF Module
  • 10W 840-930MHz RF Module10W 840-930MHz RF Module
  • 10W 840-930MHz RF Module10W 840-930MHz RF Module
  • 10W 840-930MHz RF Module10W 840-930MHz RF Module
  • 10W 840-930MHz RF Module10W 840-930MHz RF Module

10W 840-930MHz RF Module

Discover FZX's 10W 840-930MHz RF Module, a key component for advanced drone defense mechanisms. As leaders in drone interference technology, RF modules, and anti-drone products, we offer bespoke frequency customization to enhance your drone mitigation strategies.

Send Inquiry

Product Description

With the proliferation of drones being operated without proper authorization, the importance of the 10W 840-930MHz Drone UAV GPS Jammer Module cannot be overstated. Focusing on disrupting GPS and WiFi frequencies crucial for drone communication and navigation, this module emerges as a key solution to address the rising challenges posed by unauthorized drone usage. Recognized for its stability and reliability, customers have lauded the effectiveness of this module in drone jamming systems. Moreover, our commitment to providing technical support and exceptional after-sales service ensures that customers receive comprehensive assistance in assembling and utilizing the drone jammer.

FZX 10W 840-930MHz RF Module Parameter

Project Index Unit Remark
Frequency Range 840-930 MHz Customers can customize the frequency
Operating Voltage 28 V 28-32V
Maximum output power 40±0.5 dBm 10W@≤1A
Gain 35±1 dB Peak-to-peak
In-band fluctuations ≤2 dB Peak-to-peak
Spurious emissions Within work zone ≤-15dBm/1MHz dBm Center frequency plus CW signal to maximum
Output power time measurement
Outside work zone 9KHz~1GHz No higher than normal noise floor clutter dBm
1G~12.75GHz dBm
Output voltage standing wave ratio ≤1.30 Without power, standard network output -10dBm
≤1.30 Power Up, Dual Directional Coupler Test
High and low temperature test Working temperature -10~+55 Low temperature can start
Gain stability ±1.5 @-40℃~+55℃ dB
Power stability ±1 @-40℃~+55℃ dB
Power supply requirements ≥2A@+28Vdc; Continuous wave output 10W
Power supply interface Power cord red positive black negative red positive black negative
RF output connector SMA SMA external screw female seat
Electric current ≤1 A
Size 25.6*111.7*17 mm
Weight 0.14 Kg

FZX 10W 840-930MHz RF Module Feature And Application

The function of a drone countermeasure RF module (Radio Frequency module) is to disrupt the operational capabilities of drones through the emission of targeted radio frequencies. These modules are a critical component of drone countermeasure systems, serving several key purposes:

Interference with Communication: By broadcasting on the same frequencies used by drones for control, the RF module can effectively jam the communication link, leading to a loss of control by the operator and potentially triggering the drone's fail-safe protocols.Interference with Communication: By broadcasting on the same frequencies used by drones for control, the RF module can effectively jam the communication link, leading to a loss of control by the operator and potentially triggering the drone's fail-safe protocols.

Disruption of Navigation: With many drones relying on GPS for navigation, the RF module can emit signals that interfere with GPS reception, causing the drone to lose its positional accuracy and thus its ability to navigate effectively.

Compelling Drone Actions: The disruption of both communication and navigation can force the drone into predetermined safety responses, such as landing at the current location or returning to the point of origin.

Deterrence of Unlawful Use: In areas where privacy or security is paramount, the RF module acts as a deterrent against the illegal use of drones for surveillance or other malicious activities.

Safeguarding of Sensitive Locations: By being strategically placed around sensitive sites like military installations or government buildings, the RF module helps to create a protective barrier against drone incursions.

Ensuring Safe Airspace: During events that require clear and safe airspace, such as public gatherings or emergency responses, the RF module ensures that drones do not pose a risk to the proceedings.

In essence, the drone countermeasure RF module is designed to intervene in the drone's operational framework, using radio frequency interference to enforce safety and security measures, thereby protecting designated areas from potential drone-related threats.
