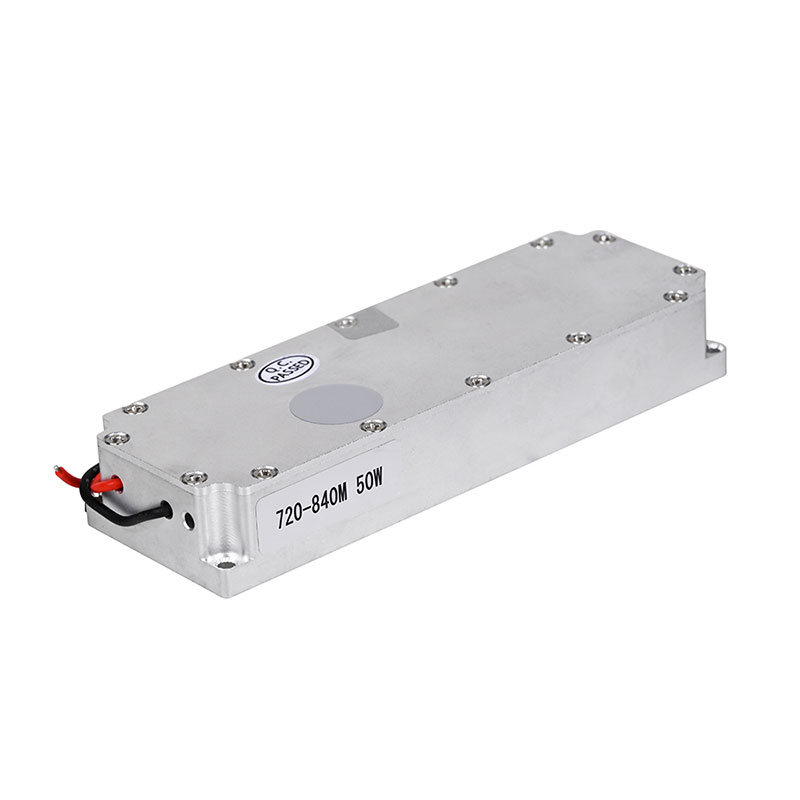

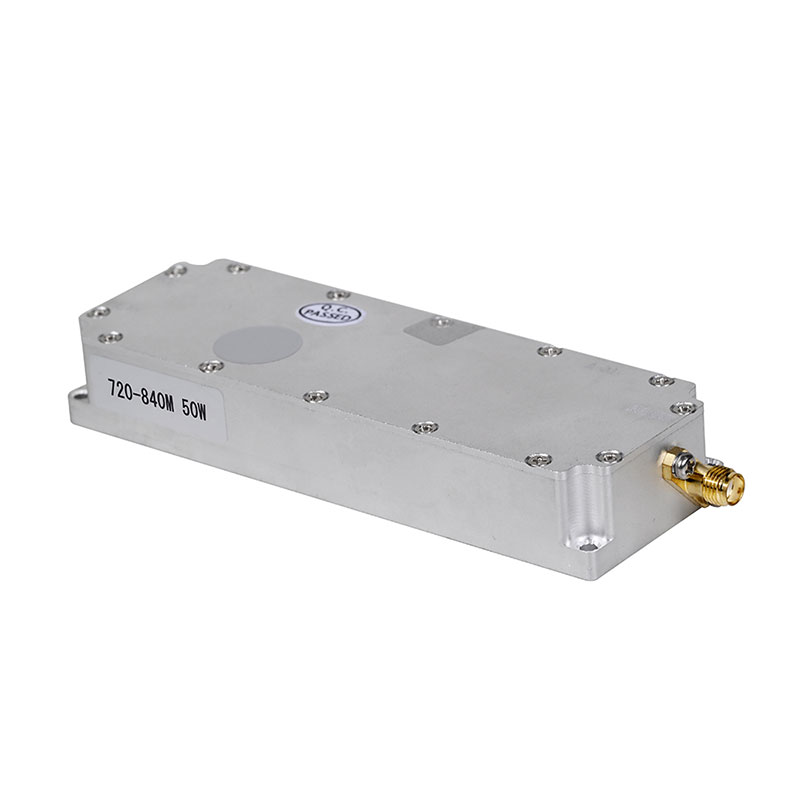

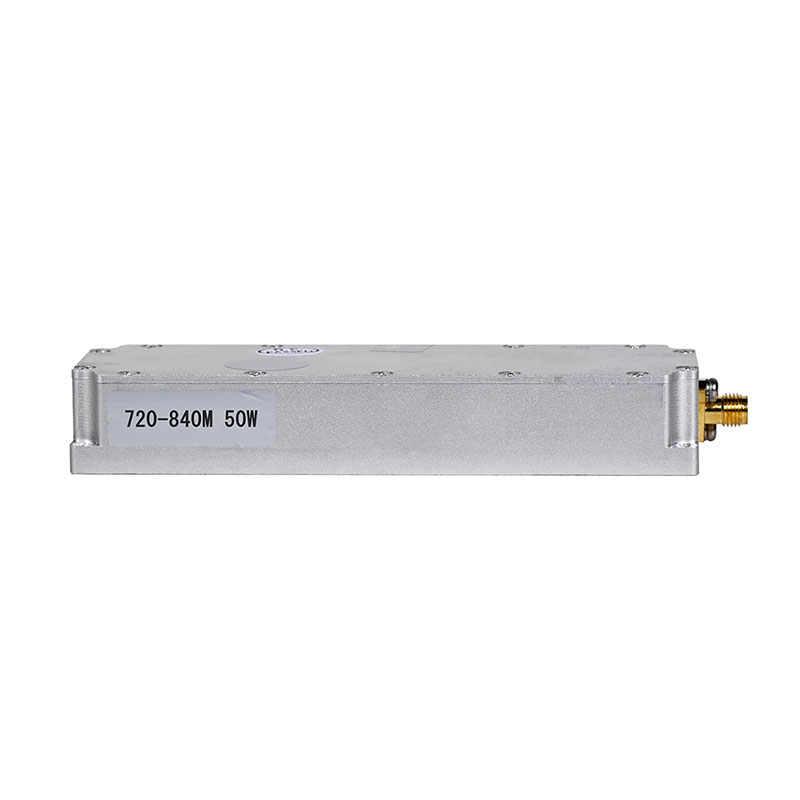

50W 720-840MHz RF Module
  • 50W 720-840MHz RF Module50W 720-840MHz RF Module
  • 50W 720-840MHz RF Module50W 720-840MHz RF Module
  • 50W 720-840MHz RF Module50W 720-840MHz RF Module
  • 50W 720-840MHz RF Module50W 720-840MHz RF Module
  • 50W 720-840MHz RF Module50W 720-840MHz RF Module
  • 50W 720-840MHz RF Module50W 720-840MHz RF Module

50W 720-840MHz RF Module

FZX's 50W 720-840MHz RF Module is a specialized tool for combating drone threats by targeting their GPS and WiFi frequencies. This module is a fundamental element in our anti-drone systems, offering a reliable and effective means to neutralize drone activities.

Send Inquiry

Product Description

Rising concerns regarding unauthorized drone activities necessitate the deployment of effective anti-drone measures. At the forefront of these efforts stands the 150W 720-840MHz Drone UAV GPS Jammer Module, specifically designed to disrupt GPS and WiFi frequencies utilized by drones. Recognized for its stability and reliability, this module serves as a vital component in enhancing airspace security and curtailing the risks associated with irresponsible drone usage. With a focus on customer satisfaction, technical support, and after-sales service, our team ensures streamlined integration and operational efficiency of the drone jammer in combating unauthorized drone operations.

50W 720-840MHz RF Module Parameter

Project Index Unit Remark
Frequency Range 720-840 MHz Customers can customize the frequency
Operating Voltage 28 V 28-32V
Maximum output power 47±0.5 dBm 50W@≤3.5A
Gain 42±1 dB Peak-to-peak
In-band fluctuations ≤2 dB Peak-to-peak
Spurious emissions Within work zone ≤-15dBm/1MHz dBm Center frequency plus CW signal to maximum
Output power time measurement
Outside work zone 9KHz~1GHz No higher than normal noise floor clutter dBm
1G~12.75GHz dBm
Output voltage standing wave ratio ≤1.30 Without power, standard network output -10dBm
≤1.30 Power Up, Dual Directional Coupler Test
High and low temperature test Working temperature -10~+55 Low temperature can start
Gain stability ±1.5 @-40℃~+55℃ dB
Power stability ±1 @-40℃~+55℃ dB
Power supply requirements ≥4A@+28Vdc; Continuous wave output 50W

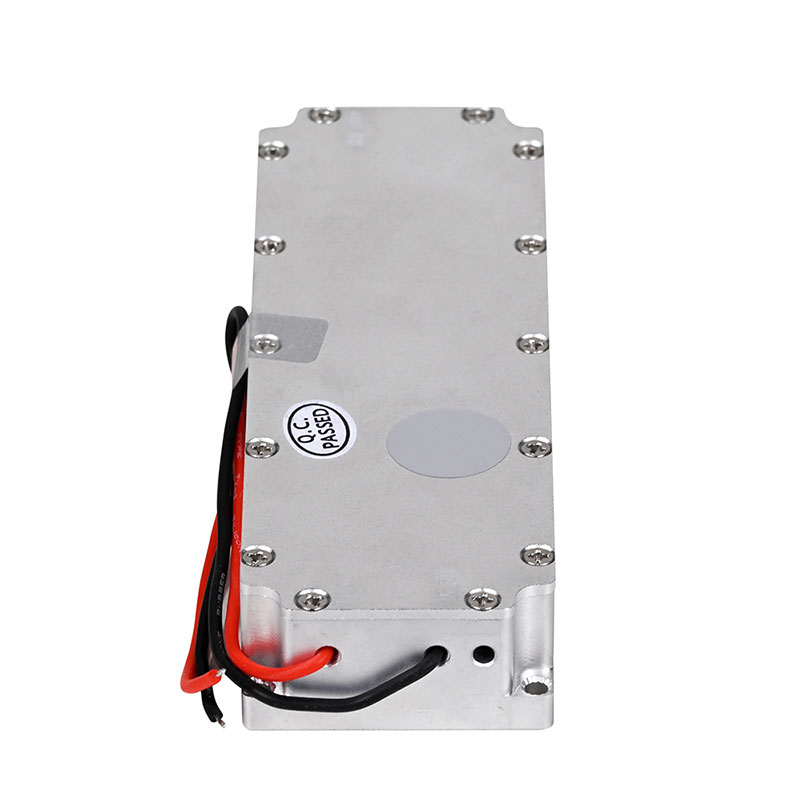

Power supply interface Power cord red positive black negative red positive black negative

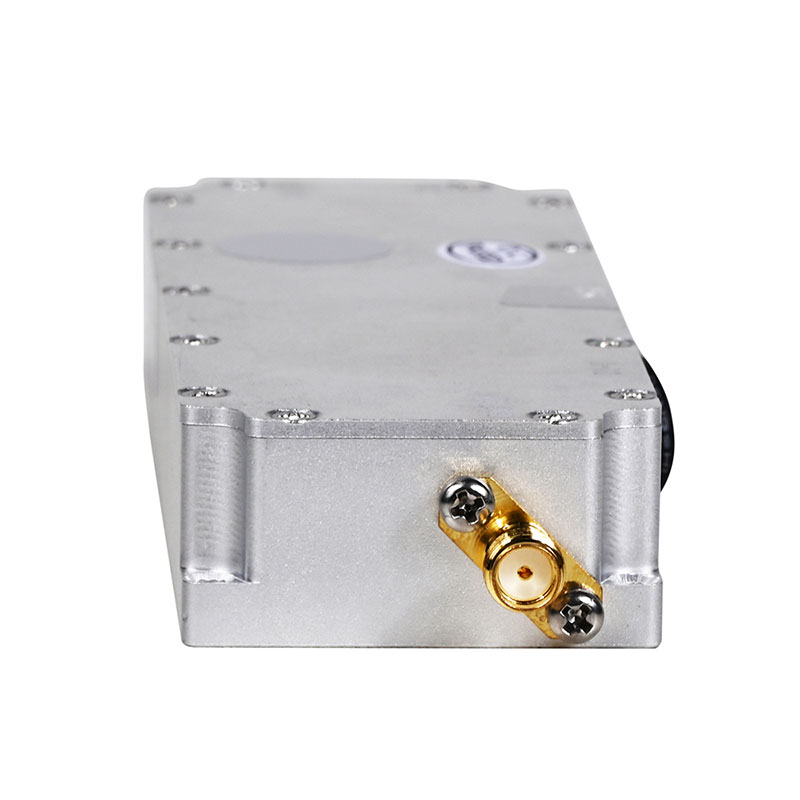

RF output connector SMA SMA external screw female seat
Electric current ≤3.5 A
Size 60*150*21.5 mm
Weight 0.16 Kg

50W 720-840MHz RF Module Feature And Application


The 50W 720-840MHz RF Module is an integral part of any drone countermeasure system and serves the critical function of disrupting drones' communication and navigation systems. By transmitting specific radio frequencies, the RF module impedes drones from operating normally, resulting in a safer and more secure environment. Here are some essential roles played by RF modules in drone security measures:

Interrupting Communication: The RF module disrupts communication between drones and their operators by transmitting on drone control frequencies, potentially leading to control loss or the activation of safety procedures.

Disrupting Navigation: RF modules interfere with GPS reception and disrupt the drone's navigation system, compromising its accuracy and flight capabilities.

Initiating Safety Procedures: By disrupting communication and navigation, the RF module can compel drones to perform safety procedures, such as immediate landing or returning to the takeoff point.

Preventing Unauthorized Activities: RF modules act as deterrence against unauthorized drone operations, enhancing privacy and security measures.

Safeguarding Critical Infrastructure: The installation of RF modules around military bases, government facilities, airports, and critical infrastructure protects against unauthorized drone intrusions and reduces security risks.

Ensuring Airspace Safety: RF modules maintain airspace safety during public events or emergencies by preventing drone interference with aviation activities or rescue operations.


In conclusion, the drone countermeasure RF module is an essential technology that disrupts drone operations, enforces safety measures, and protects specific areas from potential drone-related threats.
