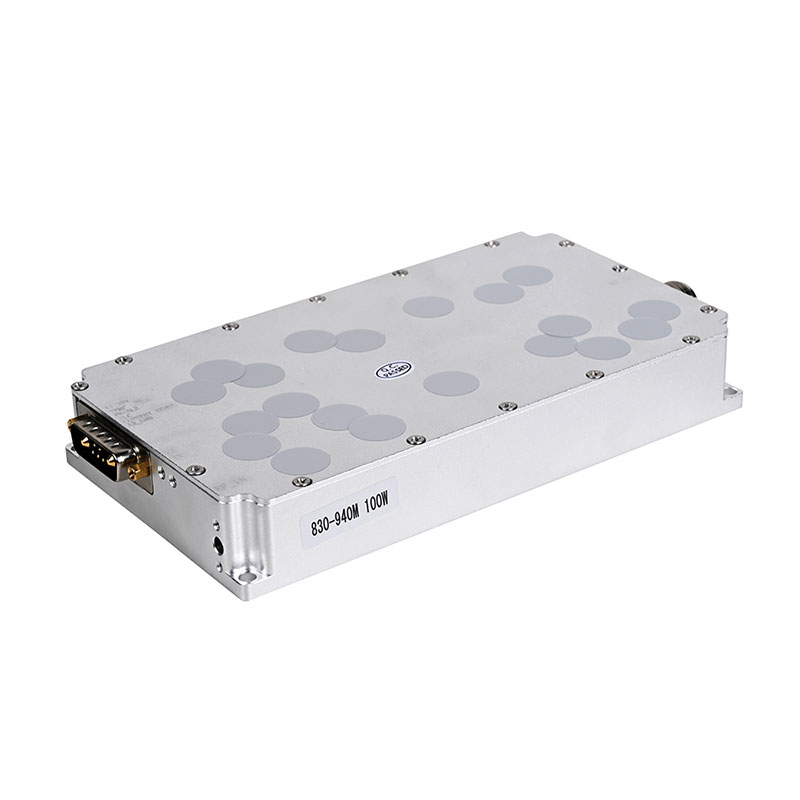

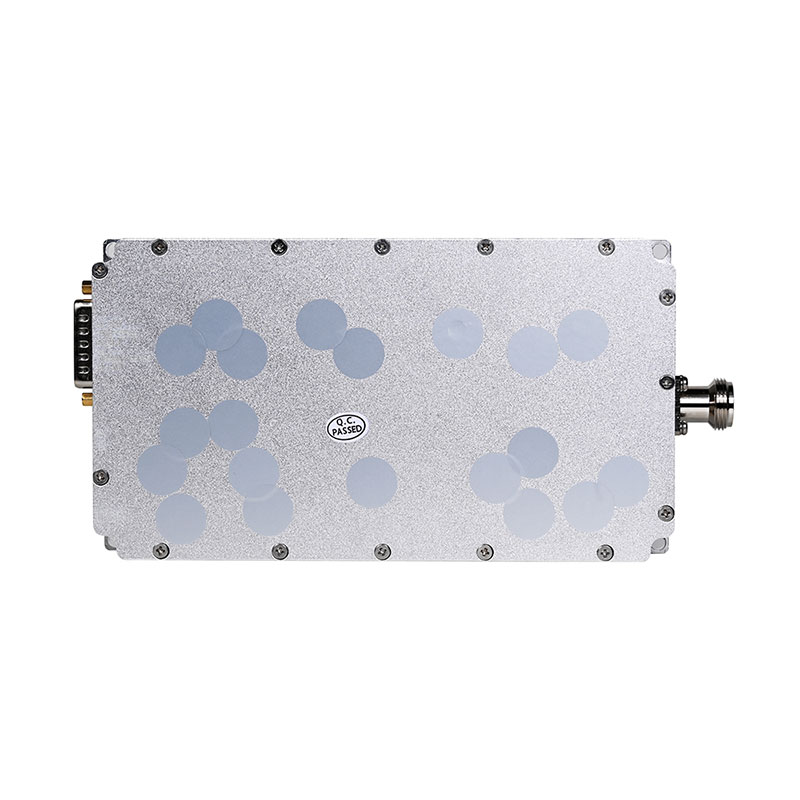

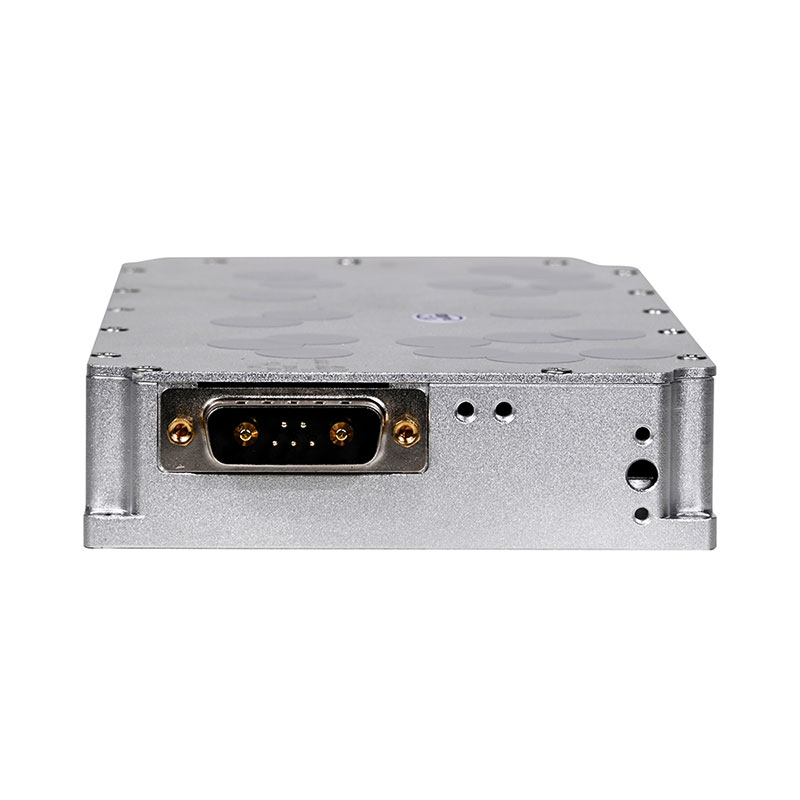

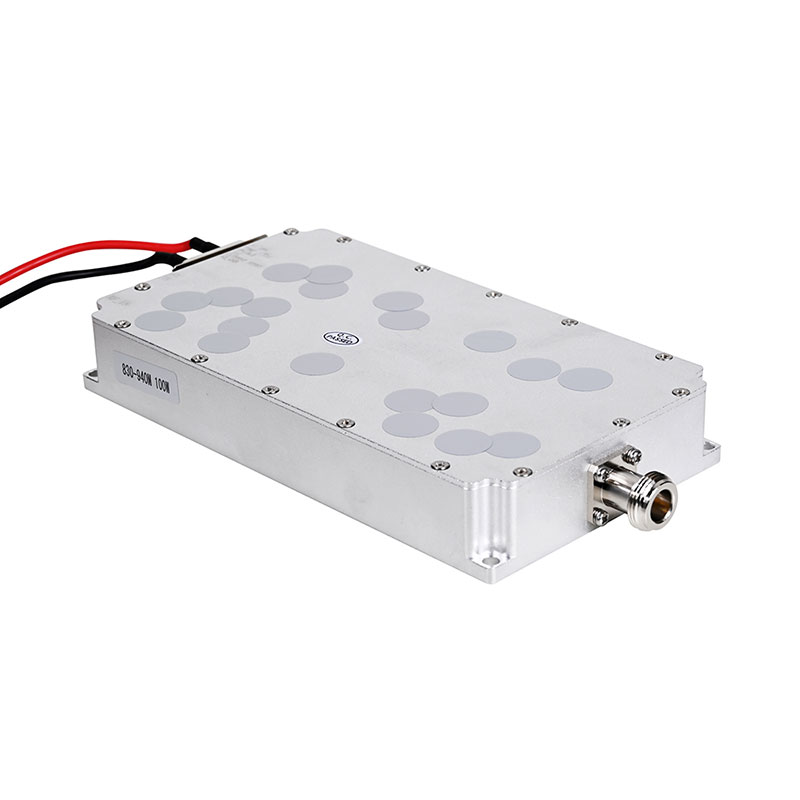

100W 830-940MHz RF Module

FZX's 100W 830-940MHz RF Module is an advanced solution to counter drone threats by disrupting their GPS and WiFi frequencies. This module is a key component of our anti-drone strategy, providing a proactive defense against the vulnerabilities associated with drone activity and safeguarding protected areas.

Send Inquiry

Product Description


The mounting risks posed by the unauthorized operation of drones highlight the critical need for robust countermeasures to address these growing threats. The 100W 830-940MHz Drone UAV GPS Jammer Module stands as a pivotal element in tackling these challenges, effectively disrupting the GPS and WiFi frequencies commonly exploited by drones. This module functions as a crucial defense mechanism in safeguarding the integrity of airspace and controlling unauthorized drone activities efficiently.


The module's exceptional stability and proven performance have firmly established its reputation as a trusted solution in the field of anti-drone technology. It not only disrupts the drone's ability to navigate and communicate but also denies them the vital signals they rely on for their operation. This ensures that unauthorized drones are rendered ineffective, significantly reducing the risks they pose to airspace security.


Furthermore, our unwavering commitment to providing comprehensive technical support and exceptional after-sales service ensures that the drone jammer is seamlessly integrated into existing systems and operates at its optimal performance. We understand that each deployment scenario is unique, and we tailor our services to ensure that our clients have the necessary assistance to maximize the effectiveness of the drone jammer in bolstering airspace protection against unauthorized drone incursions. By combining our advanced technology with our commitment to customer service, we strive to provide a comprehensive solution that ensures the safety and security of airspace.


100W 830-940MHz RF Module Parameter

Project Index Unit Remark
Frequency Range 830-940 MHz Customers can customize the frequency
Operating Voltage 28 V 28-32V
Maximum output power 50±0.5 dBm 100W@≤7A
Gain 45±1 dB Peak-to-peak
In-band fluctuations ≤2 dB Peak-to-peak
Spurious emissions Within work zone ≤-15dBm/1MHz dBm Center frequency plus CW signal to maximum
Output power time measurement
Outside work zone 9KHz~1GHz No higher than normal noise floor clutter dBm
1G~12.75GHz dBm
Output voltage standing wave ratio ≤1.30 Without power, standard network output -10dBm
≤1.30 Power Up, Dual Directional Coupler Test
High and low temperature test Working temperature -10~+55 Low temperature can start
Gain stability ±1.5 @-40℃~+55℃ dB
Power stability ±1 @-40℃~+55℃ dB
Power supply requirements ≥8A@+28Vdc; Continuous wave output 100W

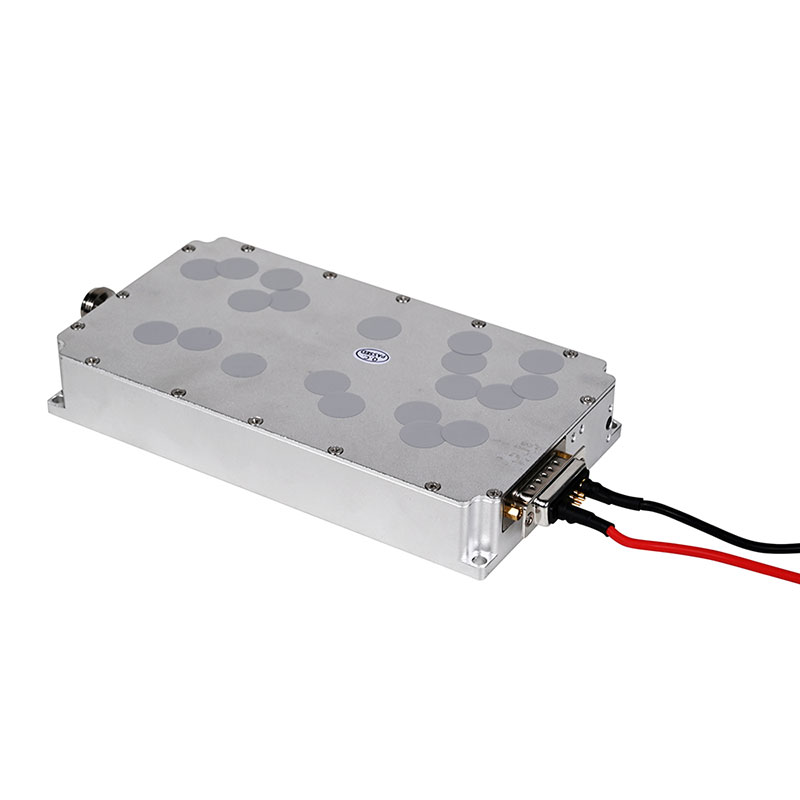

Power supply interface Power cord red positive black negative red positive black negative

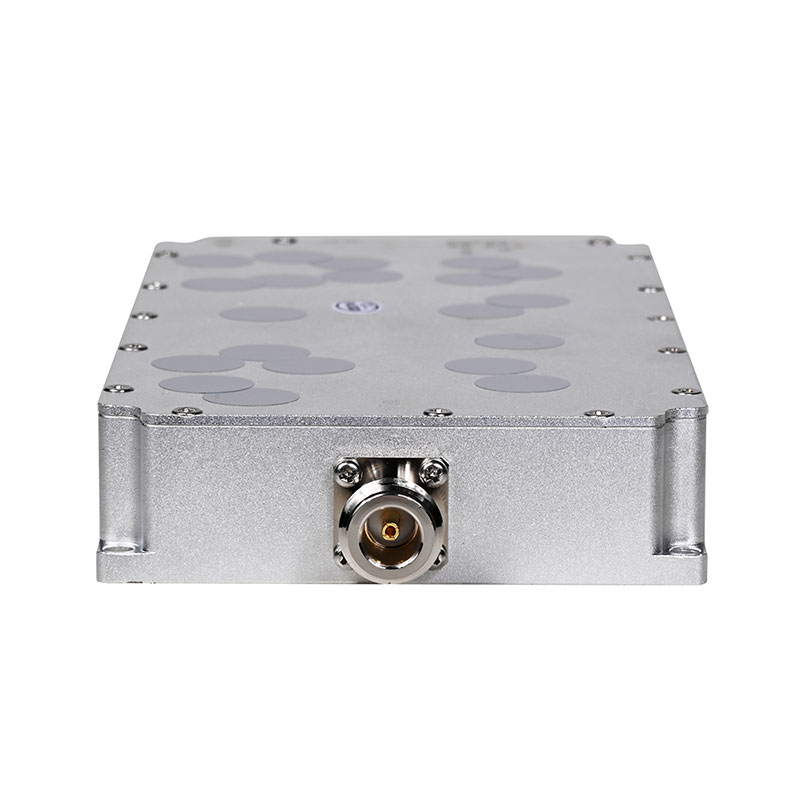

RF output connector SMA SMA external screw female seat
Electric current ≤7 A
Size 90*170*27 mm
Weight 0.8 Kg

100W 830-940MHz RF Module Feature And Application


The core purpose of a drone countermeasure radio frequency (RF) module is to hinder the communication and navigation of drones by broadcasting targeted radio frequencies, thereby impeding their standard functionality. Integrated within drone countermeasure systems, these modules play indispensable roles in:


Interrupting Communication Channels: By broadcasting signals on the frequencies used for drone control, the RF module can cut off the communication bridge between the drone and its operator, possibly resulting in the loss of control and the activation of safety measures.

Disrupting Navigational Accuracy: By emitting signals that interfere with GPS reception, the RF module can disturb the drone's navigation system, causing inaccuracies in positioning and restricting its flight capabilities.

Inducing Safety Procedures: By disrupting communication and navigation, the RF module can trigger the drone's safety mechanisms, such as forcing it to land immediately or return to its original launch point.

Deterring Unauthorized Use: In sensitive locations or during important events, the RF module serves as a powerful deterrent against unauthorized drone operations, enhancing privacy and security measures.

Securing Vital Facilities: Deploying RF modules around military bases, government installations, airports, and critical infrastructure provides a safeguard against unauthorized drone intrusions, minimizing potential security threats.

Preserving Airspace Integrity: During public gatherings or emergency situations, the RF module ensures the safety of airspace by preventing drones from interfering with aviation operations or rescue missions.

In essence, the drone countermeasure RF module achieves its objective by emitting targeted radio frequencies to disrupt drone operations, enforce safety measures, and safeguard designated areas from the potential risks posed by drones.
