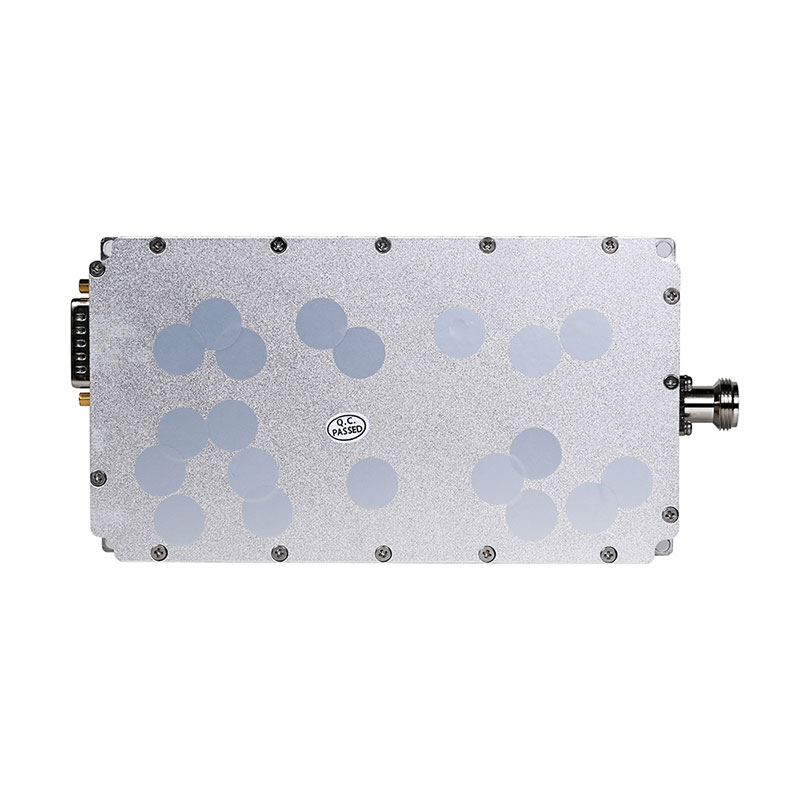

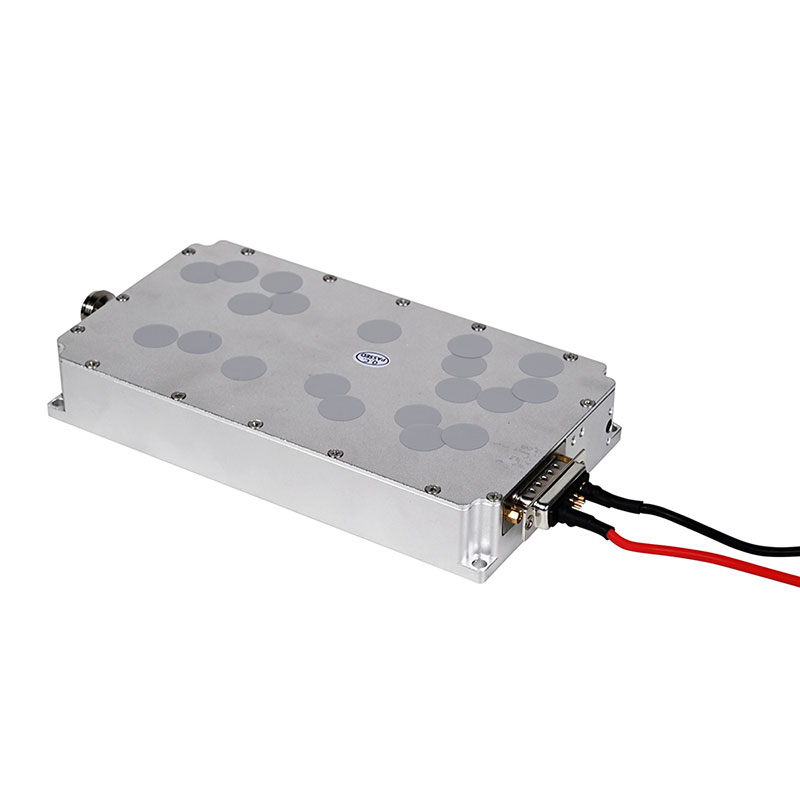

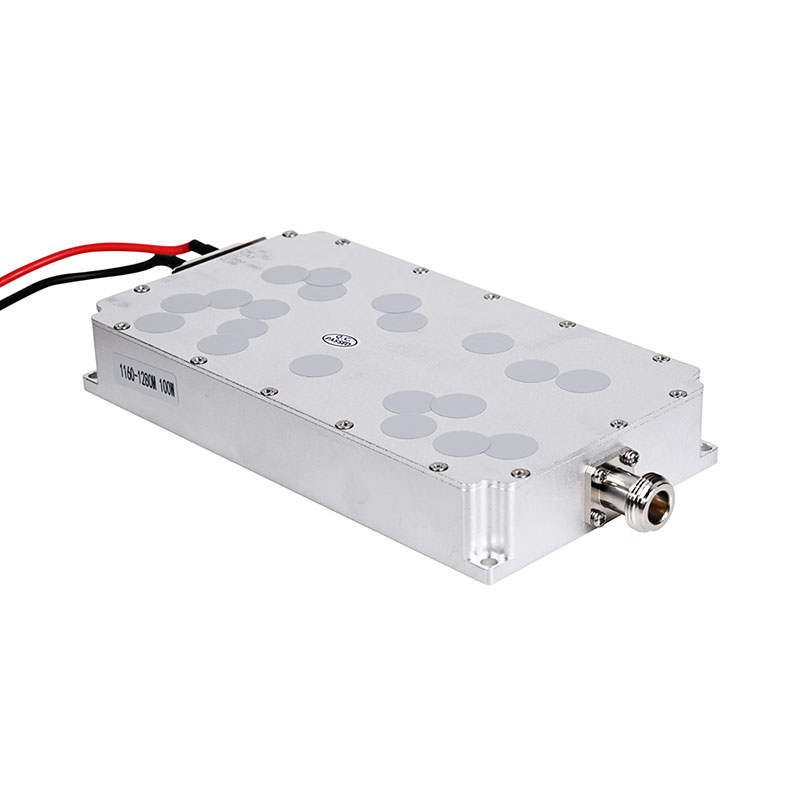

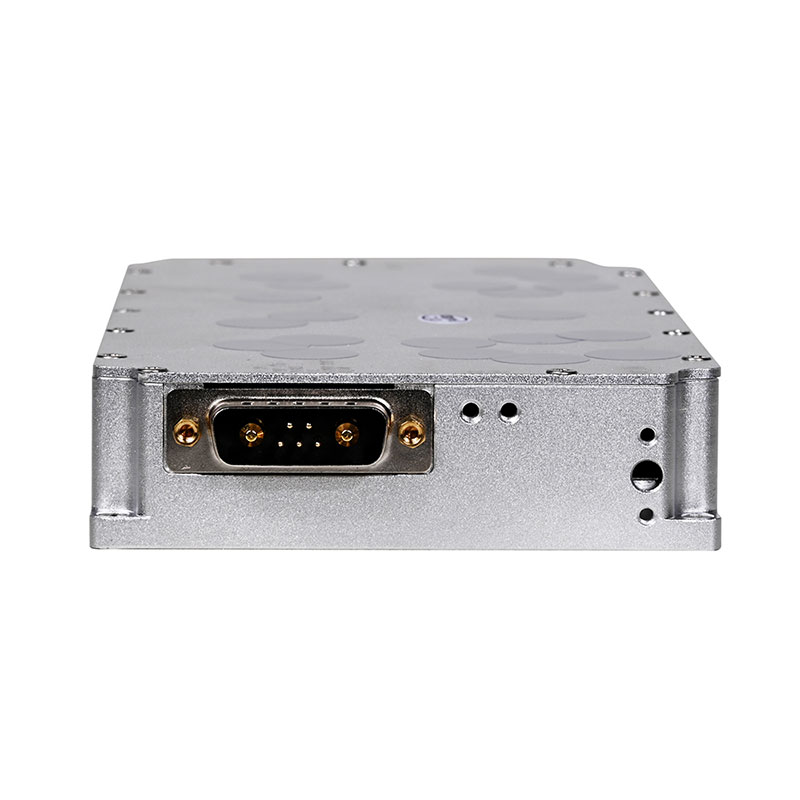

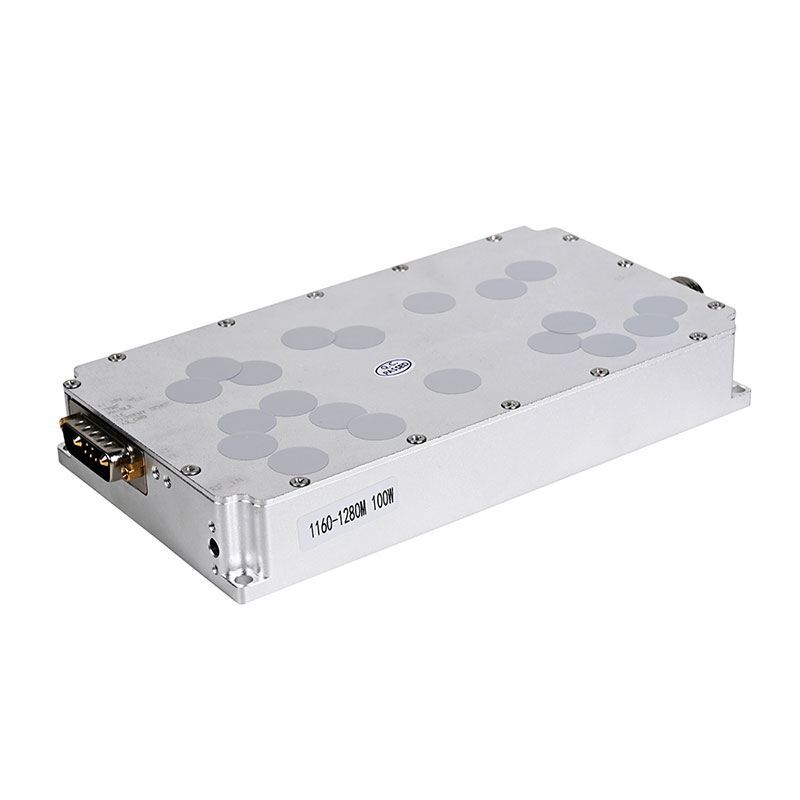

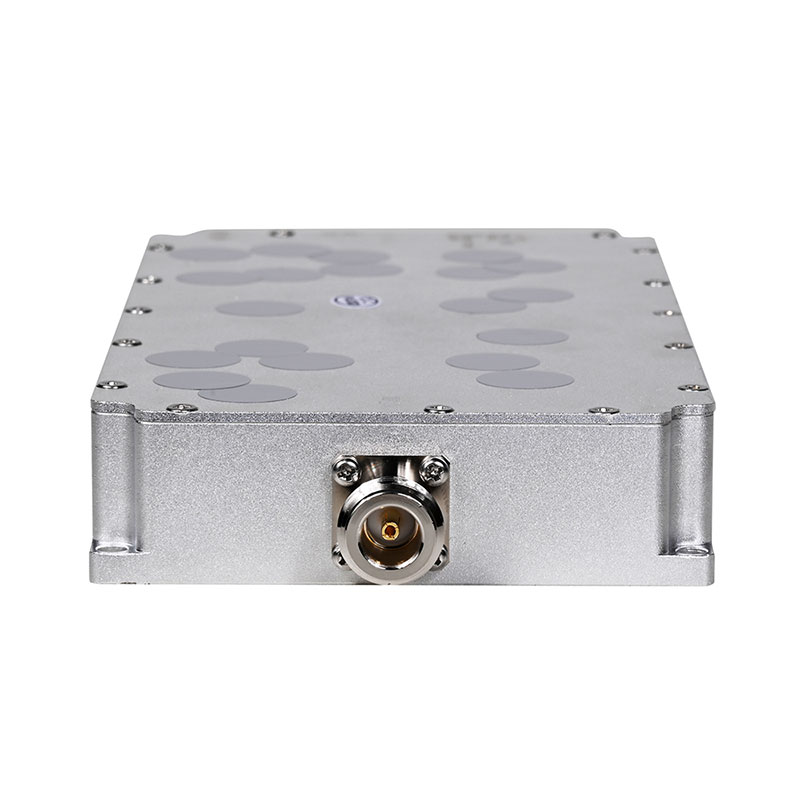

100W 1160-1280MHz RF Module

FZX's 100W 1160-1280MHz RF Module is a powerful instrument for drone defense, focusing on the GPS and WiFi frequencies that drones use for navigation and communication. This module is a core part of our anti-drone technology, ensuring that drone operations can be effectively disrupted and controlled, thereby maintaining secure airspace.

Send Inquiry

Product Description

In the face of evolving drone technology and the increasing prevalence of unauthorized drone operations, the role of the 100W 1160-1280MHz Drone UAV GPS Jammer Module becomes even more critical. By disrupting the GPS and WiFi frequencies essential to drone communication and navigation, this module serves as a frontline defense in maintaining airspace security. Its proven stability and reliability make it an indispensable component in countering unauthorized drone activities, while our dedicated technical support and superior after-sales service ensure a seamless integration process and optimal performance of the drone jammer.

100W 1160-1280MHz RF Module Parameter

Project Index Unit Remark
Frequency Range 1160-1280 MHz Customers can customize the frequency
Operating Voltage 28 V 28-32V
Maximum output power 50±0.5 dBm 100W@≤7A
Gain 45±1 dB Peak-to-peak
In-band fluctuations ≤2 dB Peak-to-peak
Spurious emissions Within work zone ≤-15dBm/1MHz dBm Center frequency plus CW signal to maximum
Output power time measurement
Outside work zone 9KHz~1GHz No higher than normal noise floor clutter dBm
1G~12.75GHz dBm
Output voltage standing wave ratio ≤1.30 Without power, standard network output -10dBm
≤1.30 Power Up, Dual Directional Coupler Test
High and low temperature test Working temperature -10~+55 Low temperature can start
Gain stability ±1.5 @-40℃~+55℃ dB
Power stability ±1 @-40℃~+55℃ dB
Power supply requirements ≥8A@+28Vdc; Continuous wave output 100W
Power supply interface Power cord red positive black negative red positive black negative
RF output connector SMA SMA external screw female seat
Electric current ≤7 A
Size 90*170*27 mm
Weight 0.8 Kg

100W 1160-1280MHz RF Module Feature And Application

A key function of a drone countermeasure RF module (Radio Frequency module) is to disrupt drones' communication and navigation systems by emitting specific radio frequencies, impairing their normal operations. Vital components of drone countermeasure systems, these modules fulfill essential tasks:

- **Communication Interference**: By transmitting on drone control frequencies, the RF module disrupts the communication link between the drone and its operator, potentially causing control loss and triggering safety protocols.

- **Navigation Disruption**: Emitting interference signals that affect GPS reception, the RF module disrupts the drone's navigation system, leading to positioning inaccuracies and flight constraints.

- **Forced Landing or Return**: Through the disruption of communication and navigation, the RF module can prompt the drone to execute safety procedures, such as immediate landing or returning to the launch site.

- **Prevention of Unauthorized Activities**: In sensitive areas or events, the RF module acts as a deterrent against unauthorized drone operations, reinforcing privacy and security measures.

- **Protection of Critical Infrastructure**: Deployment of RF modules around military bases, government facilities, airports, and critical infrastructure helps safeguard against unauthorized drone intrusions, reducing security vulnerabilities.

- **Ensuring Airspace Safety**: During public events or emergencies, the RF module maintains airspace safety by preventing drone interference with aviation operations or rescue efforts.

In summary, the drone countermeasure RF module disrupts drone operations through targeted radio frequencies, enforces safety measures, and protects specified areas from potential drone-related risks.
