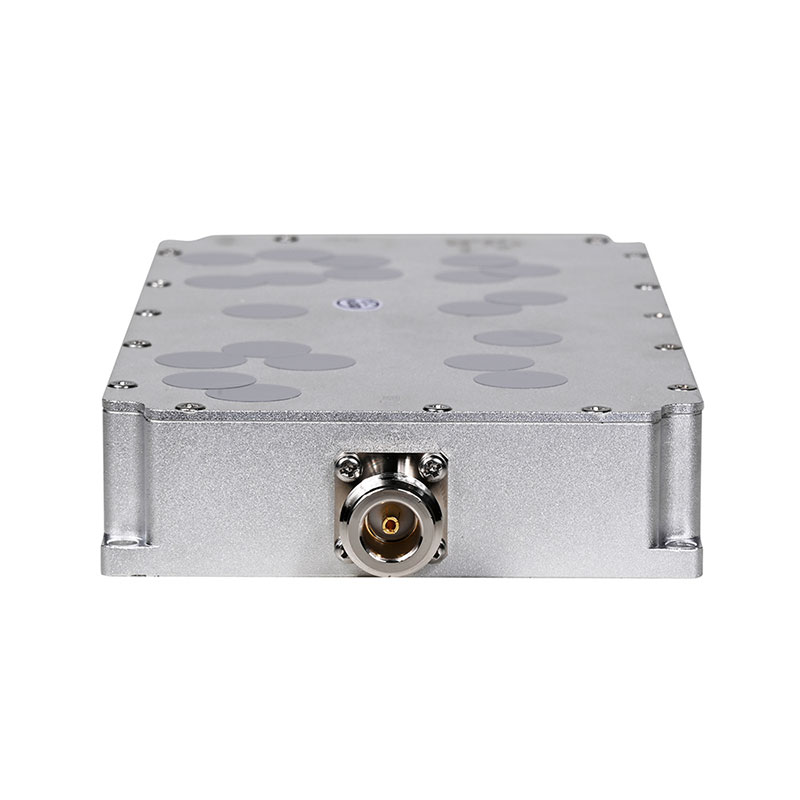

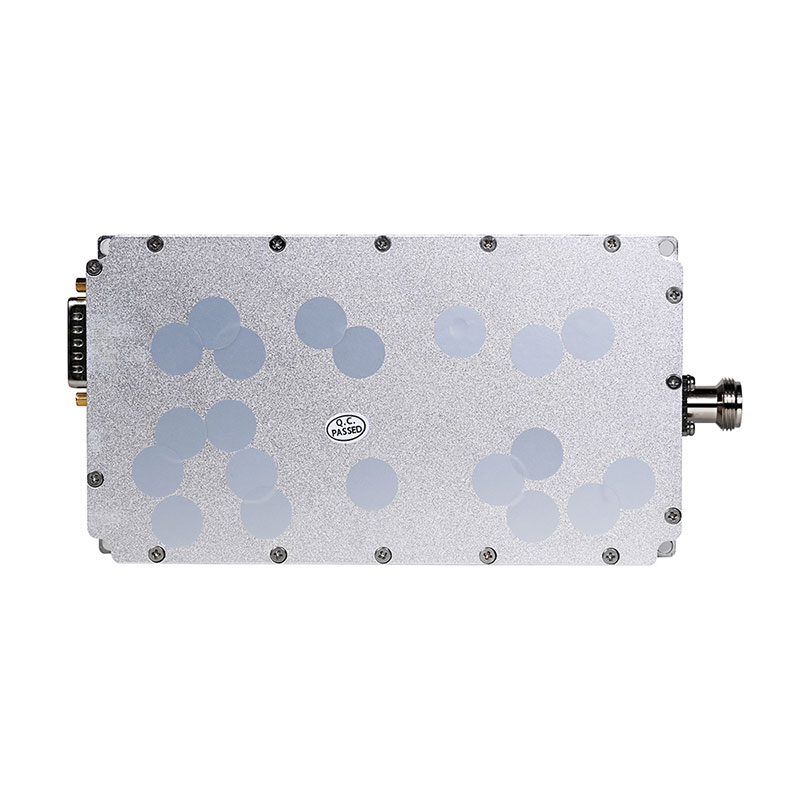

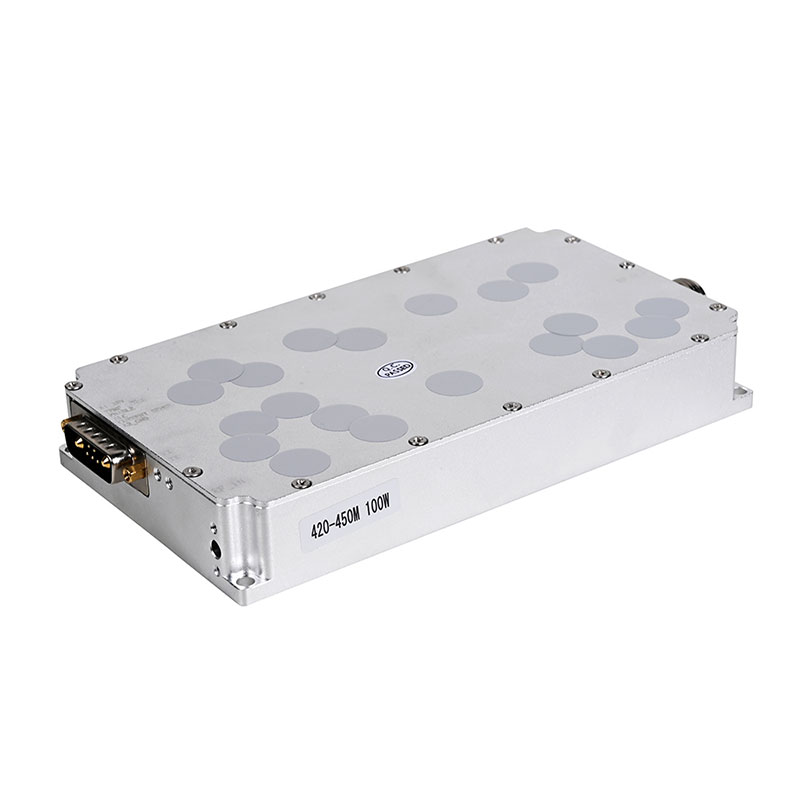

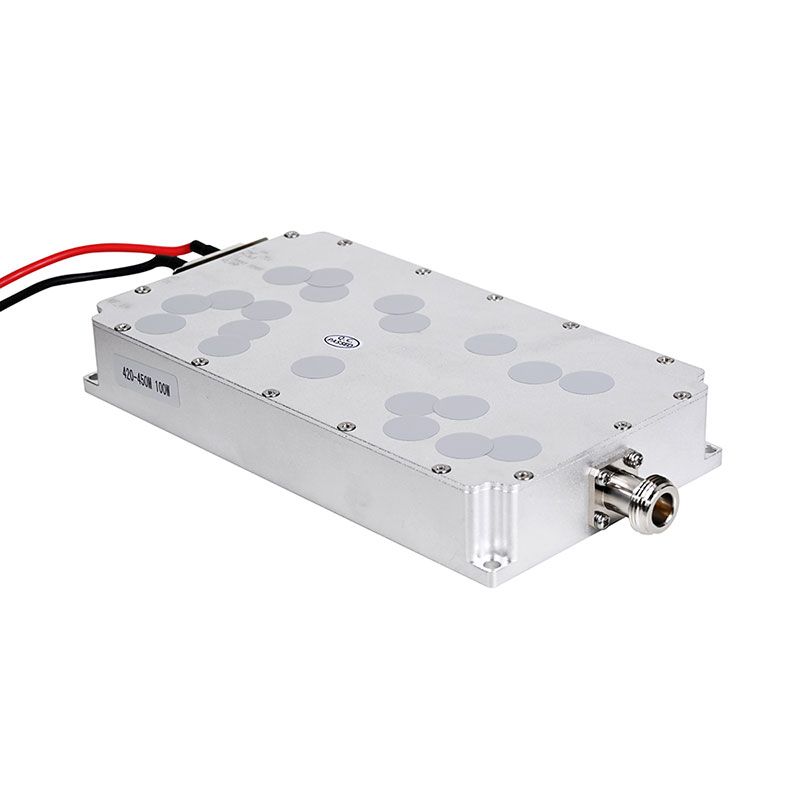

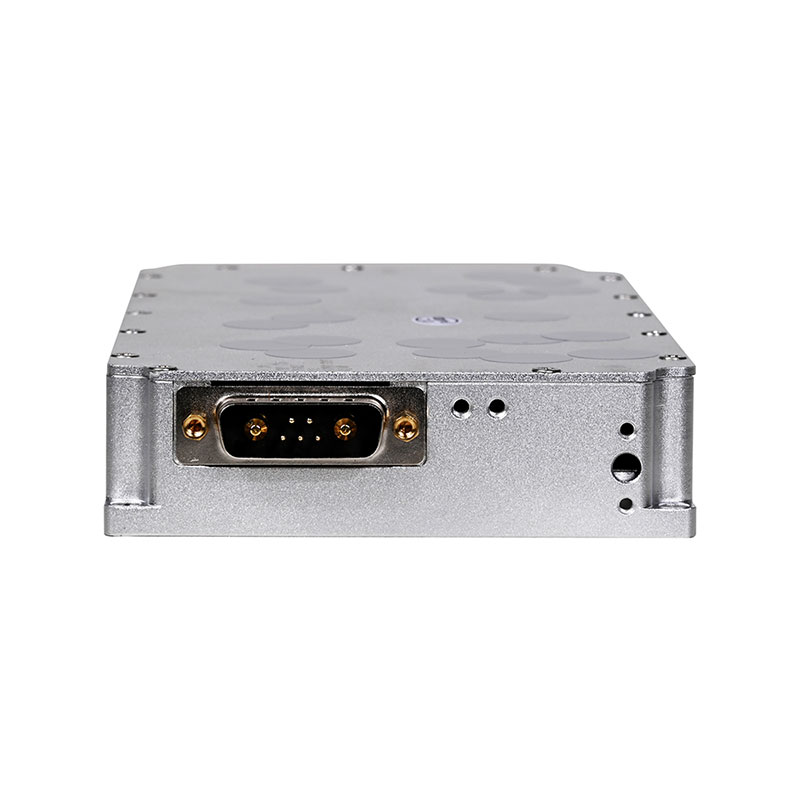

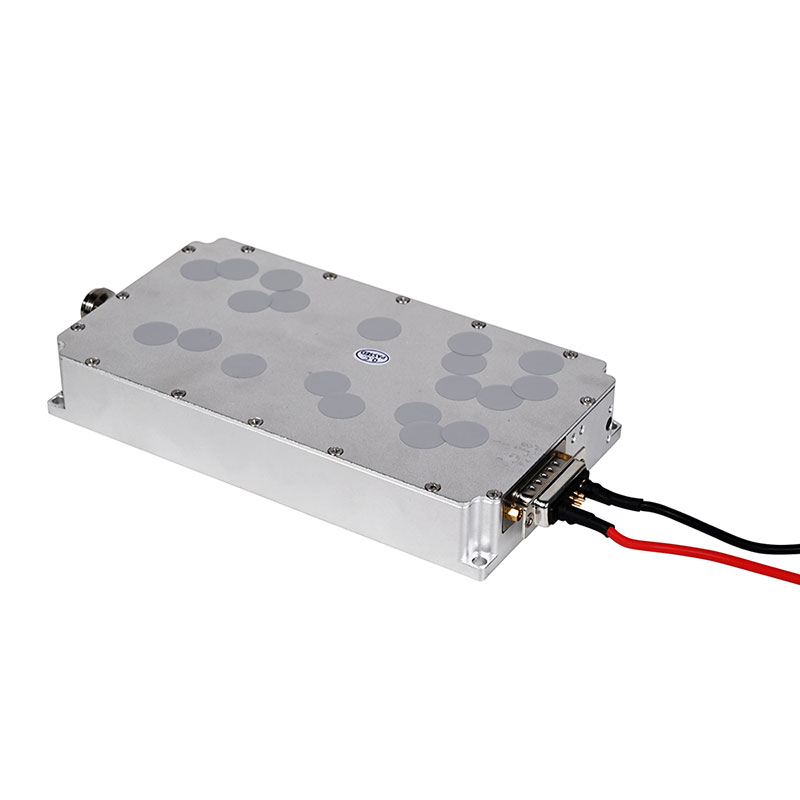

100W 420-450MHz RF Module
  • 100W 420-450MHz RF Module100W 420-450MHz RF Module
  • 100W 420-450MHz RF Module100W 420-450MHz RF Module
  • 100W 420-450MHz RF Module100W 420-450MHz RF Module
  • 100W 420-450MHz RF Module100W 420-450MHz RF Module
  • 100W 420-450MHz RF Module100W 420-450MHz RF Module
  • 100W 420-450MHz RF Module100W 420-450MHz RF Module

100W 420-450MHz RF Module

In the fight against unauthorized drone incursions, the 100W 420-450MHz RF Module from FZX is an essential strategic asset. This module targets the GPS and WiFi frequencies that drones rely on for operation, making it a key component of our anti-drone systems.Our module provides a reliable and effective means to neutralize drone activities and protect sensitive airspace.

Send Inquiry

Product Description


The growing concern around unauthorized drone operations has raised serious questions about airspace safety and security. Our cutting-edge solution to these challenges is the 100W 420-450MHz Drone UAV GPS Jammer Module. This pivotal tool effectively prevents unauthorized drone operations by disrupting the GPS and WiFi frequencies that drones rely on.

Our drone jammer module is recognized for its stability, reliability, and proven success in combating unauthorized drone flights. By ensuring airspace integrity, the module serves as a critical defense mechanism to safeguard against potential security breaches due to unauthorized drone activity.

At FZX, we are committed to providing top-notch technical support and comprehensive after-sales service. We guarantee seamless integration of the drone jammer module into your operations, resulting in enhanced operational efficiency and bolstered airspace protection.

Choose our 100W 420-450MHz Drone UAV GPS Jammer Module to protect your assets, maintain public safety, and defend against potential security breaches from unauthorized drone activity.


100W 420-450MHz RF Module Parameter

Project Index Unit Remark
Frequency Range 420-450 MHz Customers can customize the frequency
Operating Voltage 28 V 28-32V
Maximum output power 50±0.5 dBm 100W@≤7A
Gain 45±1 dB Peak-to-peak
In-band fluctuations ≤2 dB Peak-to-peak
Spurious emissions Within work zone ≤-15dBm/1MHz dBm Center frequency plus CW signal to maximum
Output power time measurement
Outside work zone 9KHz~1GHz No higher than normal noise floor clutter dBm
1G~12.75GHz dBm
Output voltage standing wave ratio ≤1.30 Without power, standard network output -10dBm
≤1.30 Power Up, Dual Directional Coupler Test
High and low temperature test Working temperature -10~+55 Low temperature can start
Gain stability ±1.5 @-40℃~+55℃ dB
Power stability ±1 @-40℃~+55℃ dB
Power supply requirements ≥8A@+28Vdc; Continuous wave output 100W
Power supply interface Power cord red positive black negative red positive black negative
RF output connector SMA SMA external screw female seat
Electric current ≤7 A
Size 90*170*27 mm
Weight 0.8 Kg

100W 420-450MHz RF Module Feature And Application


The drone countermeasure RF module plays a vital role in countering unauthorized drone activities. By emitting specific radio frequencies, this module disrupts drones' communication and navigation systems, preventing their normal operation.

With its ability to interfere with drone control frequencies, the RF module disrupts the communication link between the drone and its operator, potentially causing safety concerns. Additionally, interference signals affect GPS reception, leading to positioning inaccuracies and flight limitations for the drone.

The RF module can also prompt drones to execute safety procedures, such as immediate landing or returning to the takeoff location. This feature prevents unauthorized activities, enhancing privacy and security measures, and protecting sensitive locations such as military bases, government facilities, airports, and critical infrastructure sites.

In situations such as public events or emergencies, the RF module helps ensure airspace safety by preventing drone interference with aviation operations and rescue missions.

In summary, the drone countermeasure RF module provides a crucial means of disrupting drone operations while enforcing safety measures and protecting designated areas from potential drone-related threats.
