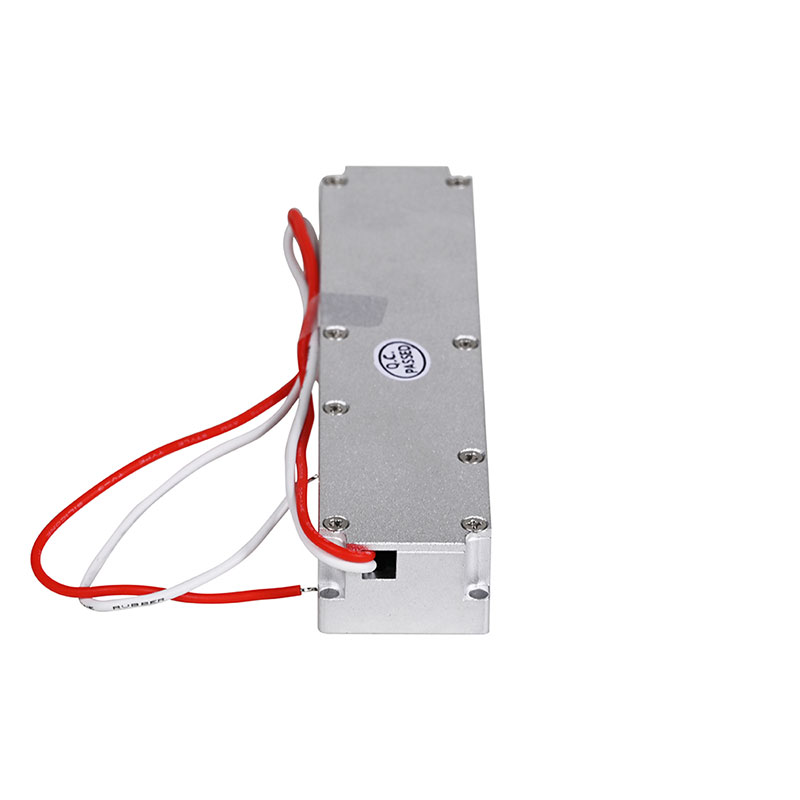

20W 5725-5850MHz RF Module
  • 20W 5725-5850MHz RF Module20W 5725-5850MHz RF Module
  • 20W 5725-5850MHz RF Module20W 5725-5850MHz RF Module
  • 20W 5725-5850MHz RF Module20W 5725-5850MHz RF Module
  • 20W 5725-5850MHz RF Module20W 5725-5850MHz RF Module
  • 20W 5725-5850MHz RF Module20W 5725-5850MHz RF Module
  • 20W 5725-5850MHz RF Module20W 5725-5850MHz RF Module

20W 5725-5850MHz RF Module

FZX's 20W 5725-5850MHz RF Module is a powerful instrument for drone suppression, targeting the GPS and WiFi frequencies commonly used by UAVs. This module is integral to our anti-drone solutions, providing a proactive defense against drone-related vulnerabilities.

Send Inquiry

Product Description

As drone misuse continues to threaten airspace security, the 20W 5725-5850MHz Drone UAV GPS Jammer Module has become a crucial tool in combatting unauthorized drone activities. This highly effective module targets the essential GPS and WiFi frequencies utilized by drones, offering a reliable and powerful defense mechanism for ensuring airspace safety. With its exceptional performance and reliability, the module is backed by dedicated technical support and outstanding after-sales service to enhance the overall efficacy of anti-drone initiatives and the integration of drone jamming systems. Overall, this module is a critical tool in maintaining security against drone-related threats.

20W 5725-5850MHz RF Module Parameter

Project Index Unit Remark
Frequency Range 5725-5850 MHz Customers can customize the frequency
Operating Voltage 28 V 28-32V
Maximum output power 43±0.5 dBm 20W@≤1.8A
Gain 38±1 dB Peak-to-peak
In-band fluctuations ≤2 dB Peak-to-peak
Spurious emissions Within work zone ≤-15dBm/1MHz dBm Center frequency plus CW signal to maximum
Output power time measurement
Outside work zone 9KHz~1GHz No higher than normal noise floor clutter dBm
1G~12.75GHz dBm
Output voltage standing wave ratio ≤1.30 Without power, standard network output -10dBm
≤1.30 Power Up, Dual Directional Coupler Test
High and low temperature test Working temperature -10~+55 Low temperature can start
Gain stability ±1.5 @-40℃~+55℃ dB
Power stability ±1 @-40℃~+55℃ dB
Power supply requirements ≥2A@+28Vdc; Continuous wave output 20W
Power supply interface Power cord red positive black negative red positive black negative
RF output connector SMA SMA external screw female seat
Electric current ≤1.8 A
Size 25.6*111.7*17 mm
Weight 0.1 Kg

20W 5725-5850MHz RF Module Feature And Application

The primary function of a drone countermeasure RF module (Radio Frequency module) is to disrupt drones' communication and navigation systems by emitting specific radio frequencies, preventing their normal operation. These modules are crucial components of drone countermeasure systems, serving critical roles:

1. **Communication Interference**: By transmitting on drone control frequencies, the RF module disrupts the communication between the drone and its operator, potentially leading to control loss and activation of safety protocols.

2. **Navigation Disruption**: Emitting interference signals that affect GPS reception, the RF module disrupts the drone's navigation system, causing inaccuracies in positioning and limitations in flight capabilities.

3. **Forced Landing or Return**: Through interference with communication and navigation, the RF module can compel the drone to execute safety procedures, such as immediate landing or return to the launch site.

4. **Prevention of Unauthorized Activities**: In sensitive areas or events, the RF module acts as a deterrent against unauthorized drone operations, enhancing privacy and security measures.

5. **Protection of Critical Infrastructure**: Deployment of RF modules around military bases, government facilities, airports, and critical infrastructure sites protects against unauthorized drone intrusions, reducing security vulnerabilities.

6. **Ensuring Airspace Safety**: During public events or emergencies, the RF module maintains airspace safety by preventing drone interference with aviation activities or rescue operations.

In essence, the drone countermeasure RF module disrupts drone operations through targeted radio frequencies, enforcing safety measures, and safeguarding specific areas from potential drone-related risks.
