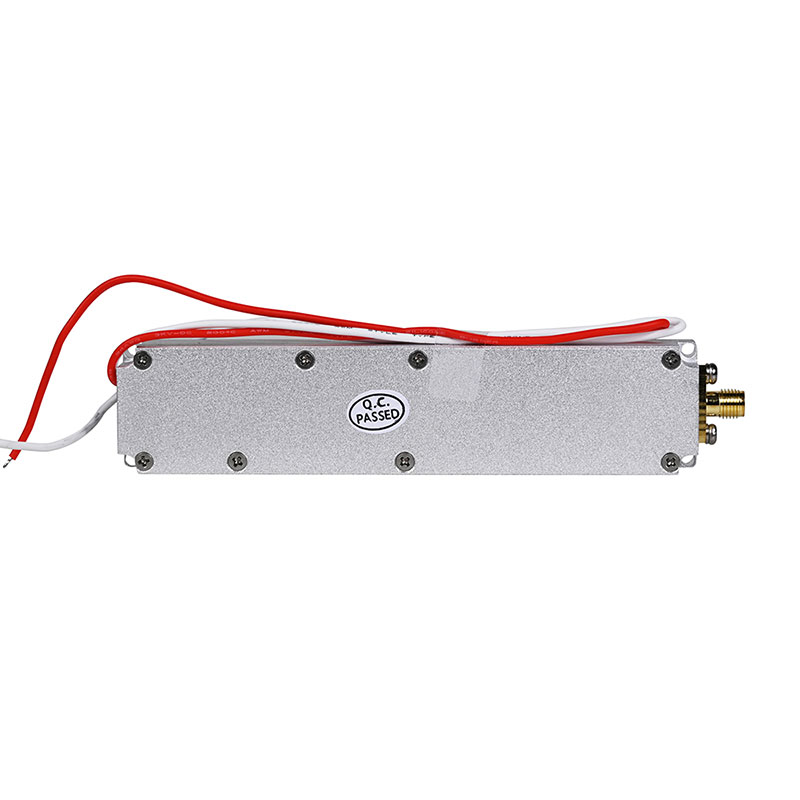

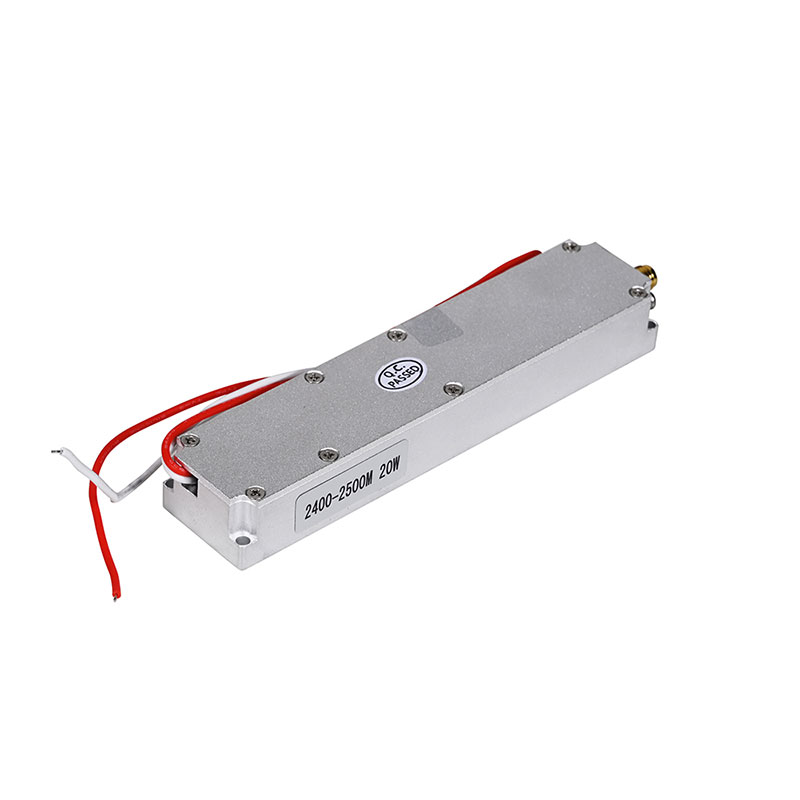

20W 2400-2500MHz RF Module
  • 20W 2400-2500MHz RF Module20W 2400-2500MHz RF Module
  • 20W 2400-2500MHz RF Module20W 2400-2500MHz RF Module
  • 20W 2400-2500MHz RF Module20W 2400-2500MHz RF Module
  • 20W 2400-2500MHz RF Module20W 2400-2500MHz RF Module
  • 20W 2400-2500MHz RF Module20W 2400-2500MHz RF Module
  • 20W 2400-2500MHz RF Module20W 2400-2500MHz RF Module

20W 2400-2500MHz RF Module

Introducing FZX's Drone UAV GPS Jammer 20W 2400-2500MHz RF Module, a sophisticated device aimed at disrupting the GPS and WiFi frequencies that drones rely on for operation. This module is a crucial component in our anti-drone initiatives, offering a reliable means to counteract drone-based intrusions.

Send Inquiry

Product Description

In the face of escalating concerns over unauthorized drone flights and the associated safety implications, the utilization of a drone jammer becomes imperative. At the forefront of this defense mechanism stands the 20W 2400-2500MHz Drone UAV GPS Jammer Module, designed to disrupt GPS and WiFi signals commonly used by drones. Acknowledged for its stability and effectiveness, the module plays a pivotal role in mitigating airspace security risks. Coupled with our commitment to providing technical assistance and quality after-sales service, customers can rely on a seamless experience in implementing and optimizing their drone jamming capabilities.

20W 2400-2500MHz RF Module Parameter

Project Index Unit Remark
Frequency Range 2400-2500 MHz Customers can customize the frequency
Operating Voltage 28 V 28-32V
Maximum output power 43±0.5 dBm 20W@≤1.8A
Gain 38±1 dB Peak-to-peak
In-band fluctuations ≤2 dB Peak-to-peak
Spurious emissions Within work zone ≤-15dBm/1MHz dBm Center frequency plus CW signal to maximum
Output power time measurement
Outside work zone 9KHz~1GHz No higher than normal noise floor clutter dBm
1G~12.75GHz dBm
Output voltage standing wave ratio ≤1.30 Without power, standard network output -10dBm
≤1.30 Power Up, Dual Directional Coupler Test
High and low temperature test Working temperature -10~+55 Low temperature can start
Gain stability ±1.5 @-40℃~+55℃ dB
Power stability ±1 @-40℃~+55℃ dB
Power supply requirements ≥2A@+28Vdc; Continuous wave output 20W
Power supply interface Power cord red positive black negative red positive black negative
RF output connector SMA SMA external screw female seat
Electric current ≤1.8 A
Size 25.6*111.7*17 mm
Weight 0.1 Kg

20W 2400-2500MHz RF Module Feature And Application


The fundamental aim of a 20W 2400-2500MHz RF Module is to hinder the communication and navigation systems of drones through the emission of precise radio frequencies, impeding their standard operations. These modules are indispensable components in drone countermeasure systems, fulfilling vital roles:


Communication Disruption: By transmitting signals on drone control frequencies, the RF module interrupts the communication link between a drone and its operator, potentially leading to a loss of control and the engagement of safety protocols.

Navigation Obstruction: Emitting signals that interfere with GPS reception, the RF module obstructs the drone's navigation system, resulting in inaccuracies in positioning and limitations in flight capabilities.

Compelled Landing or Return: Through interference with communication and navigation, the RF module can coerce the drone to follow safety measures, such as an immediate landing or returning to the original take-off point.

Deterrence Against Unauthorized Operations: In sensitive areas or events, the RF module serves as a deterrent against unauthorized drone activities, bolstering privacy and security.

Safeguarding Vital Infrastructure: The deployment of RF modules around military bases, government facilities, airports, and critical infrastructure guards against unauthorized drone intrusions, minimizing security threats.

Preservation of Airspace Security: During public events or emergencies, the RF module ensures the security of the airspace by preventing drone interference with aviation operations or rescue missions.

In essence, the drone countermeasure RF module disrupts drone operations through the emission of precise radio frequencies, enforces safety measures, and safeguards specific areas from potential drone-related hazards.




Hot Tags: 20W 2400-2500MHz RF Module, China, Manufacturer, Supplier, Factory, Customized, Wholesale, Discount, Quotation
