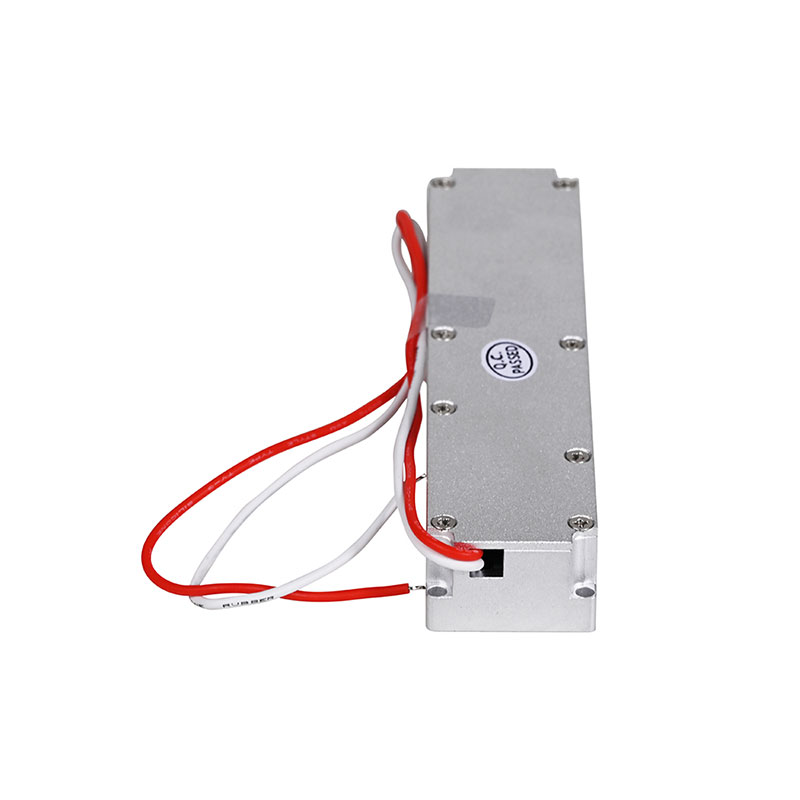

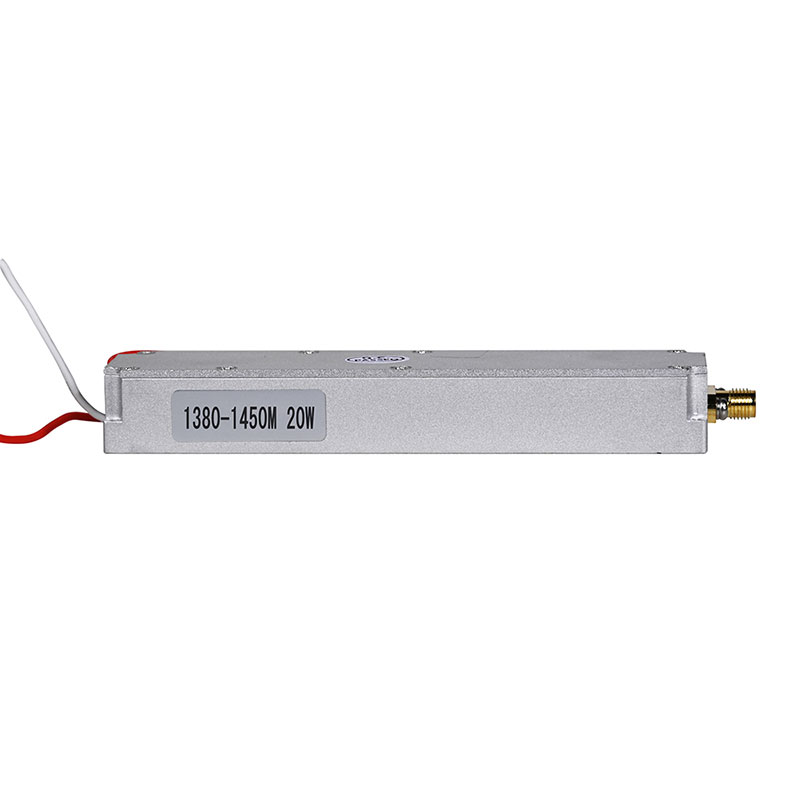

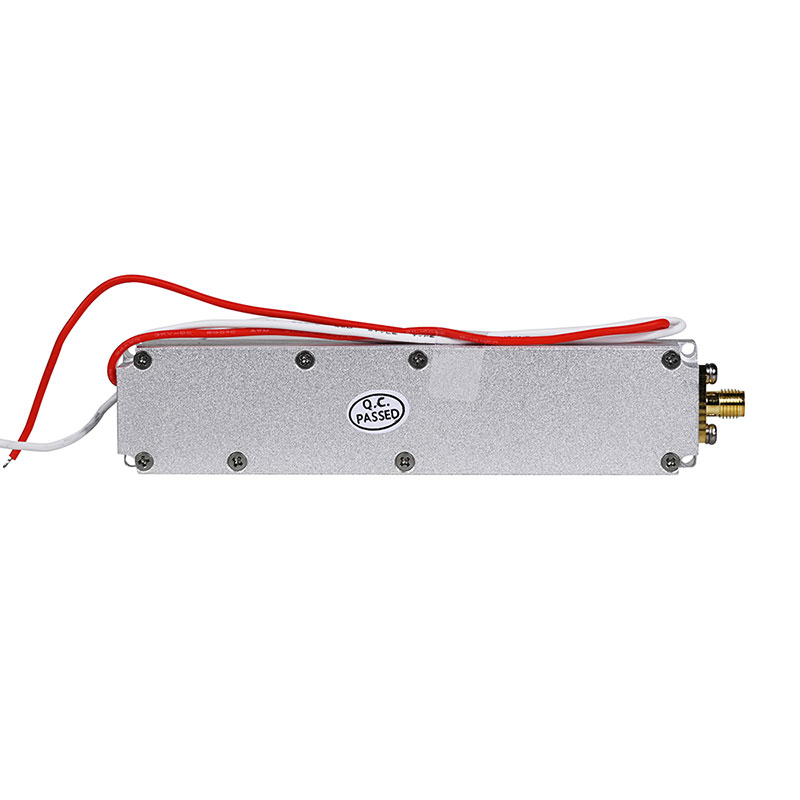

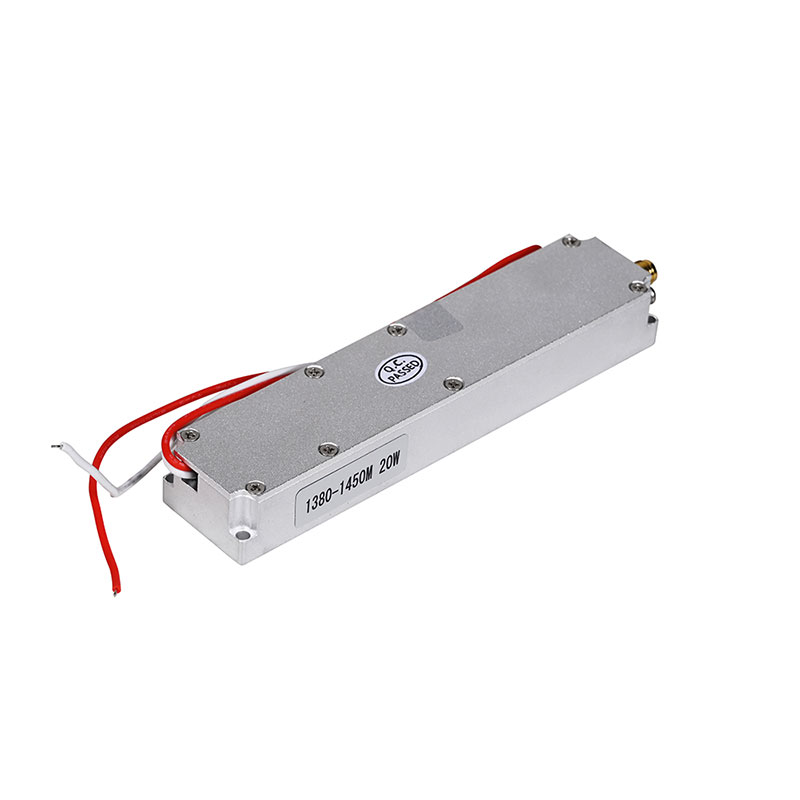

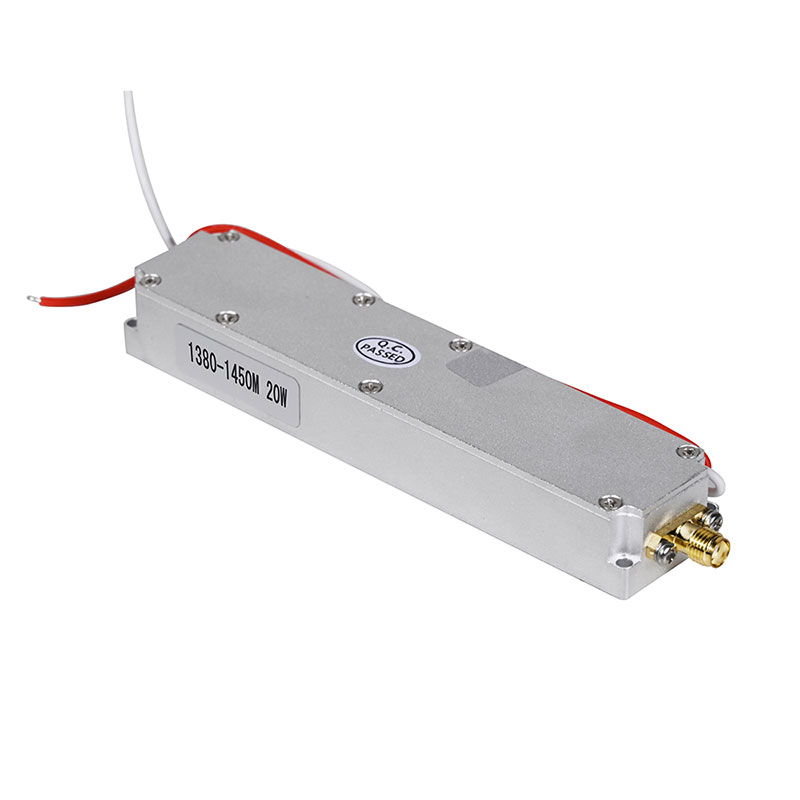

20W 1380-1450MHz RF Module
  • 20W 1380-1450MHz RF Module20W 1380-1450MHz RF Module
  • 20W 1380-1450MHz RF Module20W 1380-1450MHz RF Module
  • 20W 1380-1450MHz RF Module20W 1380-1450MHz RF Module
  • 20W 1380-1450MHz RF Module20W 1380-1450MHz RF Module
  • 20W 1380-1450MHz RF Module20W 1380-1450MHz RF Module
  • 20W 1380-1450MHz RF Module20W 1380-1450MHz RF Module

20W 1380-1450MHz RF Module

The 20W 1380-1450MHz RF Module by FZX is a cutting-edge tool in the fight against drone incursions, focusing on the critical GPS and WiFi frequencies that drones depend on. This module is a key element in our comprehensive anti-drone measures, ensuring secure airspace by disrupting drone navigation and communication.

Send Inquiry

Product Description

As drones continue to be misused and operate without proper qualifications, the 20W 1380-1450MHz Drone UAV GPS Jammer Module serves as a critical component in addressing the resulting security risks. By disrupting the GPS and WiFi frequencies commonly utilized by drones, this module plays a pivotal role in safeguarding airspace and curtailing unauthorized drone activities. Its reliability and customer satisfaction have positioned it as a preferred choice among anti-drone solutions, complemented by our commitment to providing technical support and exemplary after-sales service for an optimized user experience.

20W 1380-1450MHz RF Module Parameter

Project Index Unit Remark
Frequency Range 1380-1450 MHz Customers can customize the frequency
Operating Voltage 28 V 28-32V
Maximum output power 43±0.5 dBm 20W@≤1.8A
Gain 38±1 dB Peak-to-peak
In-band fluctuations ≤2 dB Peak-to-peak
Spurious emissions Within work zone ≤-15dBm/1MHz dBm Center frequency plus CW signal to maximum
Output power time measurement
Outside work zone 9KHz~1GHz No higher than normal noise floor clutter dBm
1G~12.75GHz dBm
Output voltage standing wave ratio ≤1.30 Without power, standard network output -10dBm
≤1.30 Power Up, Dual Directional Coupler Test
High and low temperature test Working temperature -10~+55 Low temperature can start
Gain stability ±1.5 @-40℃~+55℃ dB
Power stability ±1 @-40℃~+55℃ dB
Power supply requirements ≥2A@+28Vdc; Continuous wave output 20W
Power supply interface Power cord red positive black negative red positive black negative

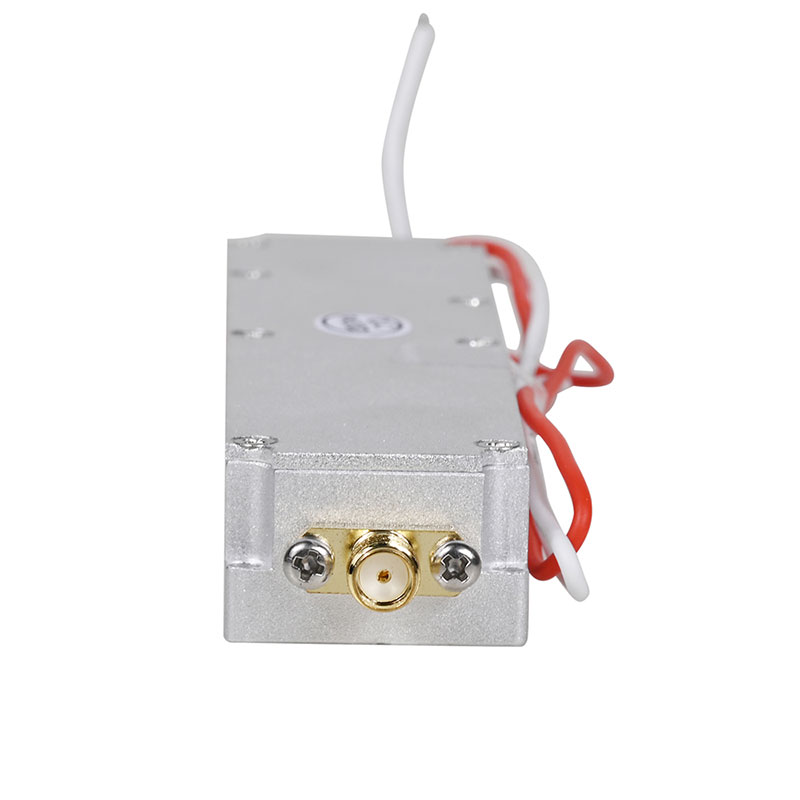

RF output connector SMA SMA external screw female seat
Electric current ≤1.8 A
Size 25.6*111.7*17 mm
Weight 0.1 Kg

20W 1380-1450MHz RF Module Feature And Application

The role of a drone countermeasure RF module (Radio Frequency module) is to disrupt the communication and navigation systems of drones by emitting specific radio frequencies, thereby preventing their normal operation. These modules are essential components of drone countermeasure systems and serve the following key functions:

1. **Communication Interference**: By transmitting on drone control frequencies, the RF module disrupts the communication link between the drone and its operator, potentially causing loss of control and activation of safety protocols.

2. **Navigation Disruption**: Emitting interference signals that affect GPS reception, the RF module disrupts the drone's navigation system, leading to inaccuracies in positioning and flight limitations.

3. **Forced Landing or Return**: By disrupting communication and navigation, the RF module can compel the drone to perform safety procedures, such as immediate landing or return to the takeoff point.

4. **Prevention of Unauthorized Activities**: In sensitive areas or special events, the RF module acts as a deterrent against unauthorized drone activities, enhancing privacy and security.

5. **Protection of Critical Infrastructure**: Deploying RF modules around military bases, government facilities, airports, and critical infrastructure helps guard against drone intrusions, reducing security risks.

6. **Maintaining Airspace Safety**: During public events or emergencies, the RF module ensures airspace safety by preventing drone interference with aviation operations or rescue missions.

In summary, the drone countermeasure RF module disrupts drone operations by emitting specific radio frequencies, enforcing safety measures, and protecting specific areas from potential drone-related threats.
