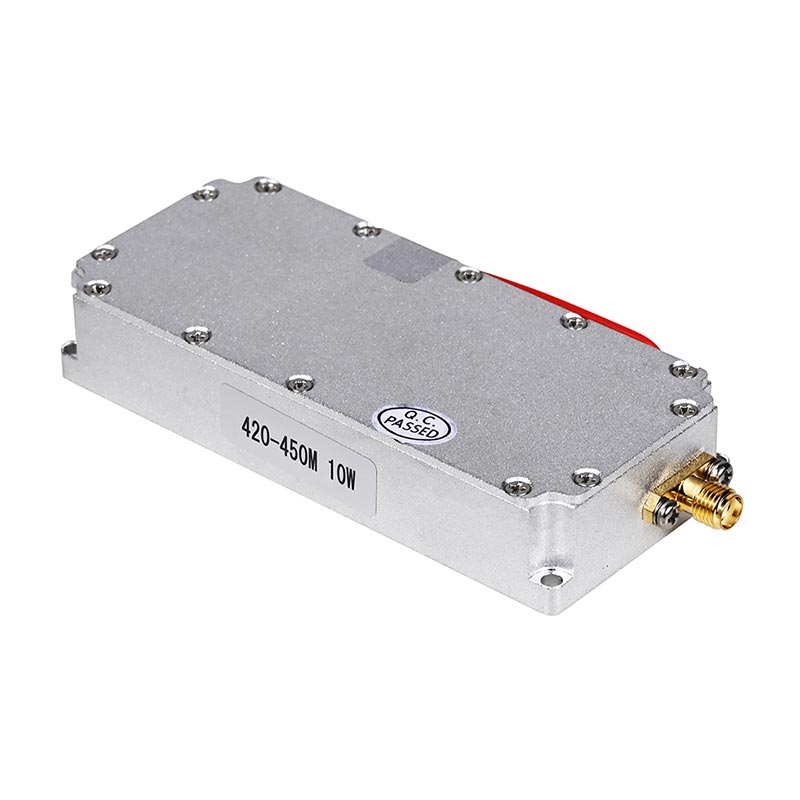

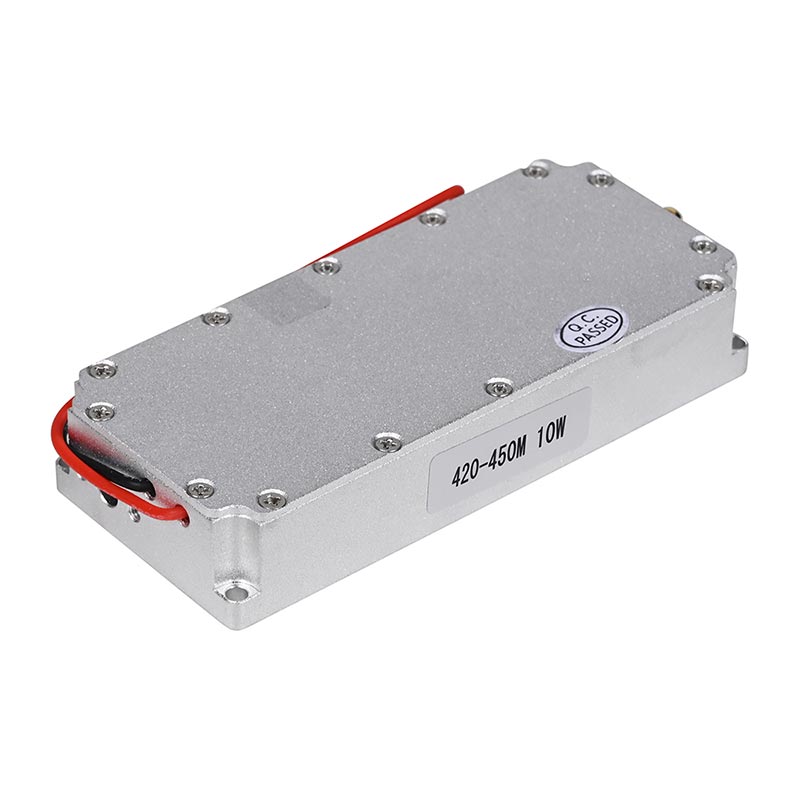

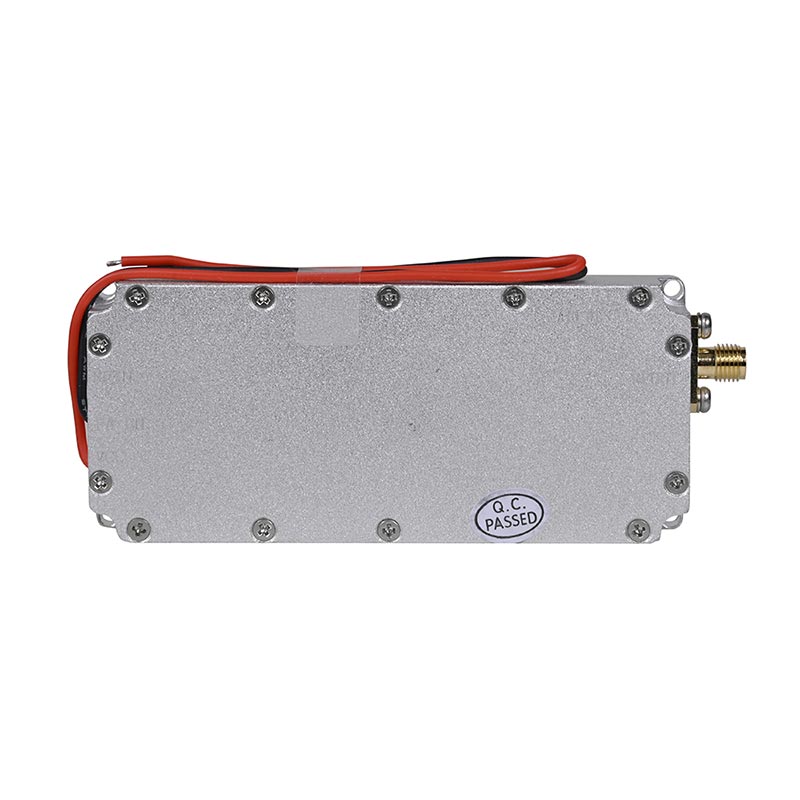

10W Anti Drone Module UAV Signal Amplifier

The 10W Anti Drone Module UAV Signal Amplifier is a versatile and strong RF power amplifier suitable for counter-drone applications across several frequency bands. This module provides consistent performance to effectively block unwanted drone activities, making it an indispensable weapon for security and military operations.

Send Inquiry

Product Description

10W Anti Drone Gan Module

Compact and strong, the 10W Anti Drone Module UAV Signal Amplifier is an RF power amplifier that can effectively oppose drones in a variety of frequency bands, such as 433 MHz, 900 MHz, 1.2 GHz, 1.5 GHz, 2.4 GHz, and 5.8 GHz. With a DC 27–28V supply voltage and a steady 10W output, it guarantees dependable interference with unapproved drones. Important characteristics include a broad operating temperature range of -20°C to 80°C, SMA connections for reliable RF communication, and a lightweight design weighing 105–109g. This module is a vital instrument for protecting airspace and eliminating drone threats in a variety of settings because to its excellent performance and adaptability.

The following are comprehensive specs for each possible frequency band:

FZX 10W Anti Drone Module Parameter

Project			Index	Unit	Remark
Frequency Range			433/900/1.2G/1.5G/2.4G/5.8G	MHz	Customers can customize the frequency
Operating Voltage			28	V	28-32V
Maximum output power			40±0.5	dBm	10W@≤1A
Gain			35±1	dB	Peak-to-peak
In-band fluctuations			≤2	dB	Peak-to-peak
Spurious emissions	Within work zone		≤-15dBm/1MHz	dBm	Center frequency plus CW signal to maximum Output power time measurement
	Outside work zone	9KHz～1GHz	No higher than normal noise floor clutter	dBm
	Outside work zone	1G～12.75GHz	No higher than normal noise floor clutter	dBm
Output voltage standing wave ratio			≤1.30		Without power, standard network output -10dBm
Output voltage standing wave ratio			≤1.30		Power Up, Dual Directional Coupler Test
High and low temperature test		Working temperature	-10～+55	℃	Low temperature can start
		Gain stability	±1.5 @-40℃～+55℃	dB
		Power stability	±1 @-40℃～+55℃	dB
Power supply requirements			≥2A@+28Vdc;		Continuous wave output 10W

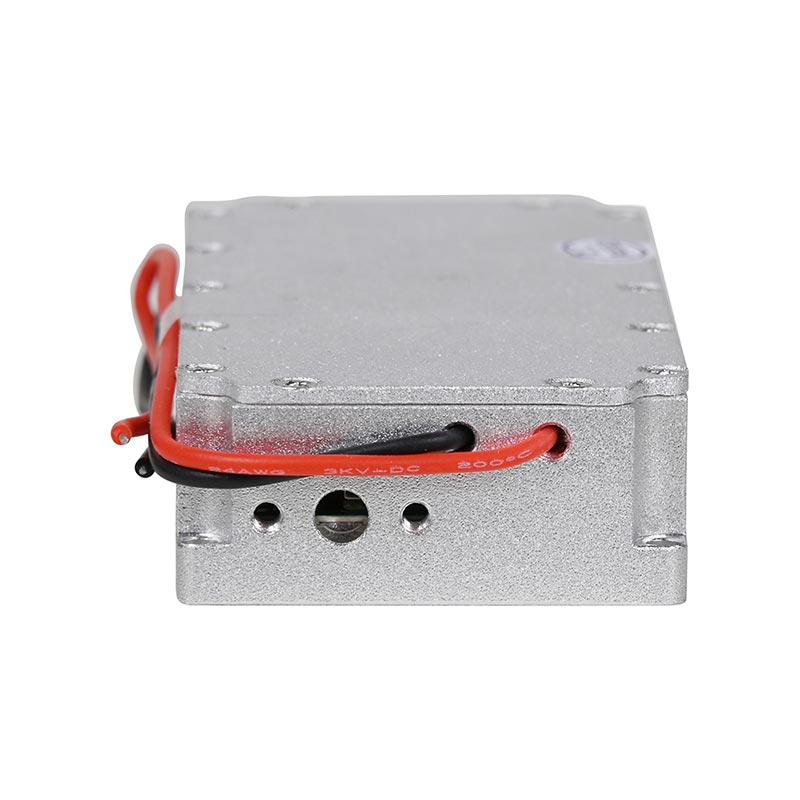

Power supply interface			Power cord red positive black negative		red positive black negative

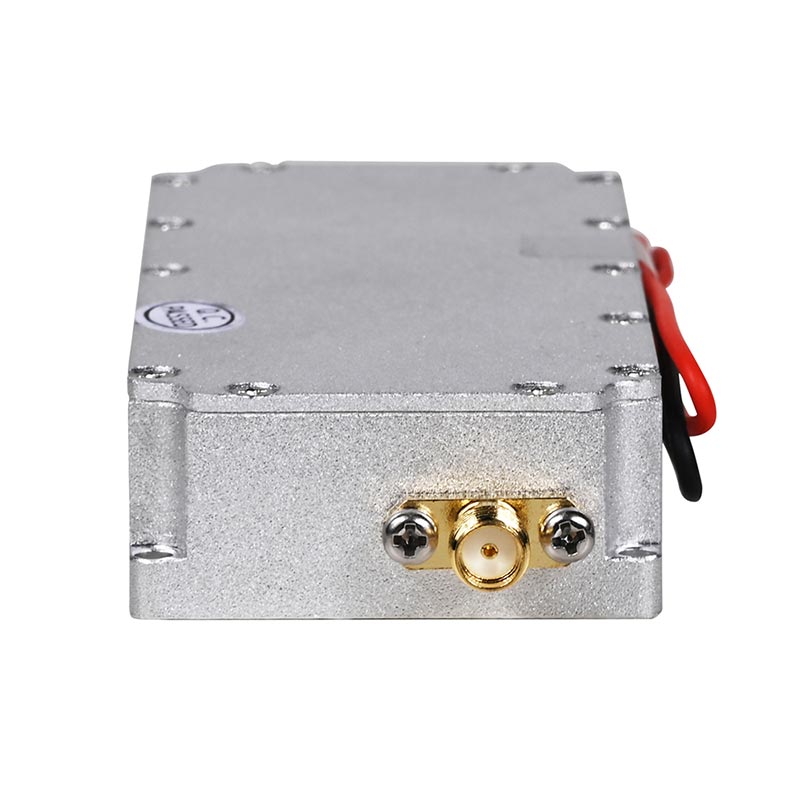

RF output connector			SMA		SMA external screw female seat
Electric current			≤1	A
Size			25.6111.717	mm
Weight			0.14	Kg

10W Anti Drone Module Key Features:

Compact and Lightweight: With dimensions of 120*30*15mm and a weight varying from 130g to 140g depending on the frequency, this device is designed for simple integration.
The module can function efficiently in temperatures ranging from -20℃ to 80℃, making it suited for a variety of environments.
Reliable Connectivity: The module's SMA connectors enable solid and strong RF connections, resulting in excellent performance.
This 10W Anti Drone Module is designed to satisfy the needs of current security systems by precisely and effectively disrupting drone communications over a wide variety of frequency bands. Its tiny size and rugged qualities make it a useful tool in any counter-drone operation.
