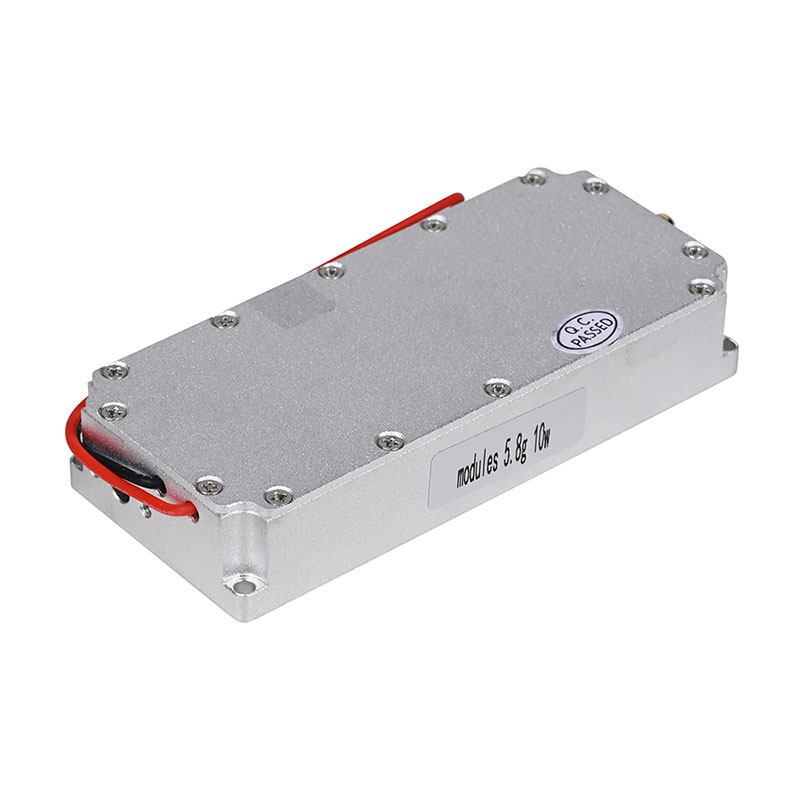

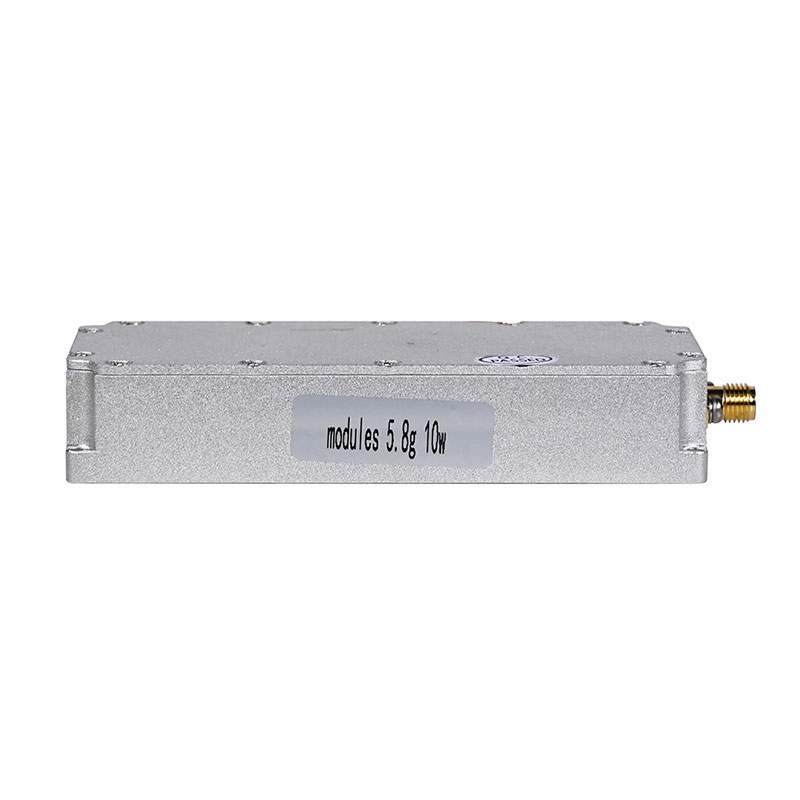

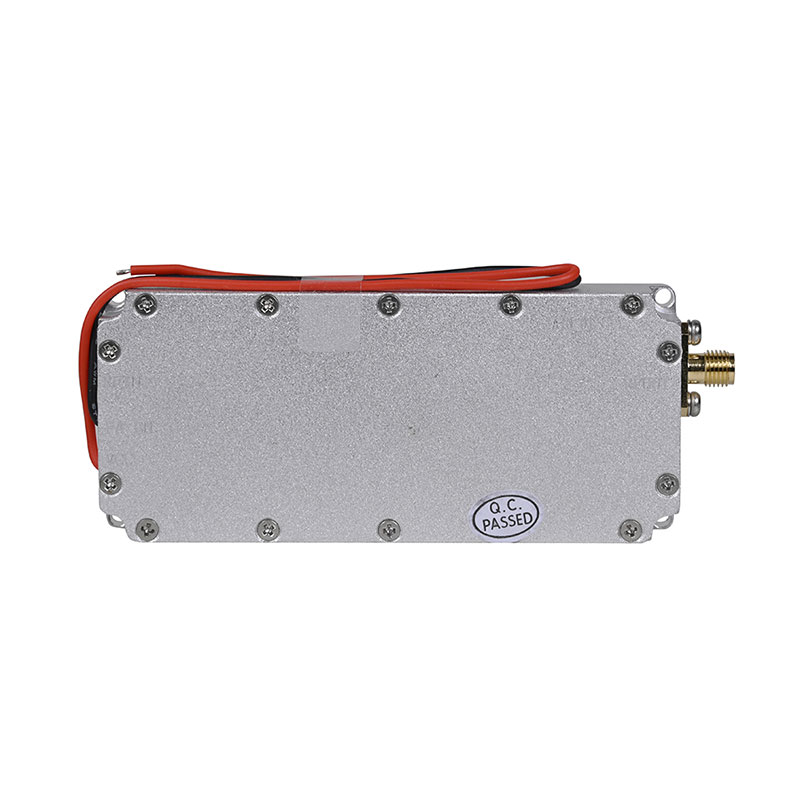

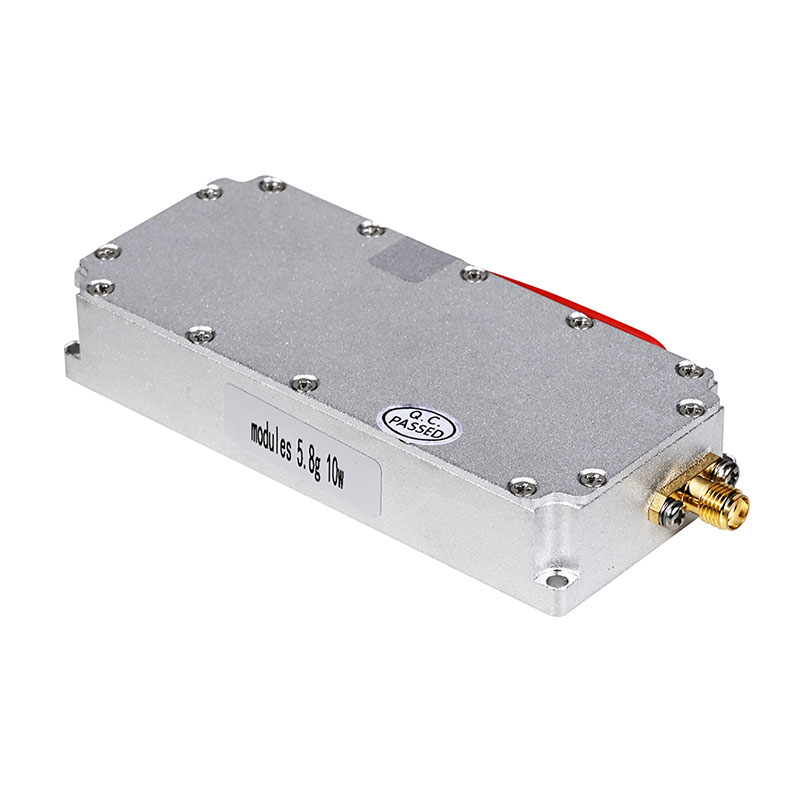

10W 5.8GHz RF Module
  • 10W 5.8GHz RF Module10W 5.8GHz RF Module
  • 10W 5.8GHz RF Module10W 5.8GHz RF Module
  • 10W 5.8GHz RF Module10W 5.8GHz RF Module
  • 10W 5.8GHz RF Module10W 5.8GHz RF Module
  • 10W 5.8GHz RF Module10W 5.8GHz RF Module
  • 10W 5.8GHz RF Module10W 5.8GHz RF Module

10W 5.8GHz RF Module

Secure your airspace with FZX's 10W 5.8GHz RF Module, a specialized component for drone countermeasures. Our expertise in drone interference, RF modules, and anti-drone products includes a custom frequency service, allowing for a tailored approach to drone defense.

Send Inquiry

Product Description

With the widespread proliferation and misuse of drones in the current landscape, the absence of requisite drone piloting qualifications has led to a multitude of risks and hazards. In maintaining order and security in airspace environments, the deployment of a drone jammer emerges as an essential defense mechanism. At the heart of these anti-drone initiatives lies the Drone UAV GPS Jammer Module, representing the core component of UAV jamming systems and serving as a key asset in countering unauthorized drone operations.

FZX 10W 5.8GHz RF Module Parameter

Project Index Unit Remark
Frequency Range 5.8G MHz Customers can customize the frequency
Operating Voltage 28 V 28-32V
Maximum output power 40±0.5 dBm 10W@≤1A
Gain 35±1 dB Peak-to-peak
In-band fluctuations ≤2 dB Peak-to-peak
Spurious emissions Within work zone ≤-15dBm/1MHz dBm Center frequency plus CW signal to maximum
Output power time measurement
Outside work zone 9KHz~1GHz No higher than normal noise floor clutter dBm
1G~12.75GHz dBm
Output voltage standing wave ratio ≤1.30 Without power, standard network output -10dBm
≤1.30 Power Up, Dual Directional Coupler Test
High and low temperature test Working temperature -10~+55 Low temperature can start
Gain stability ±1.5 @-40℃~+55℃ dB
Power stability ±1 @-40℃~+55℃ dB
Power supply requirements ≥2A@+28Vdc; Continuous wave output 10W

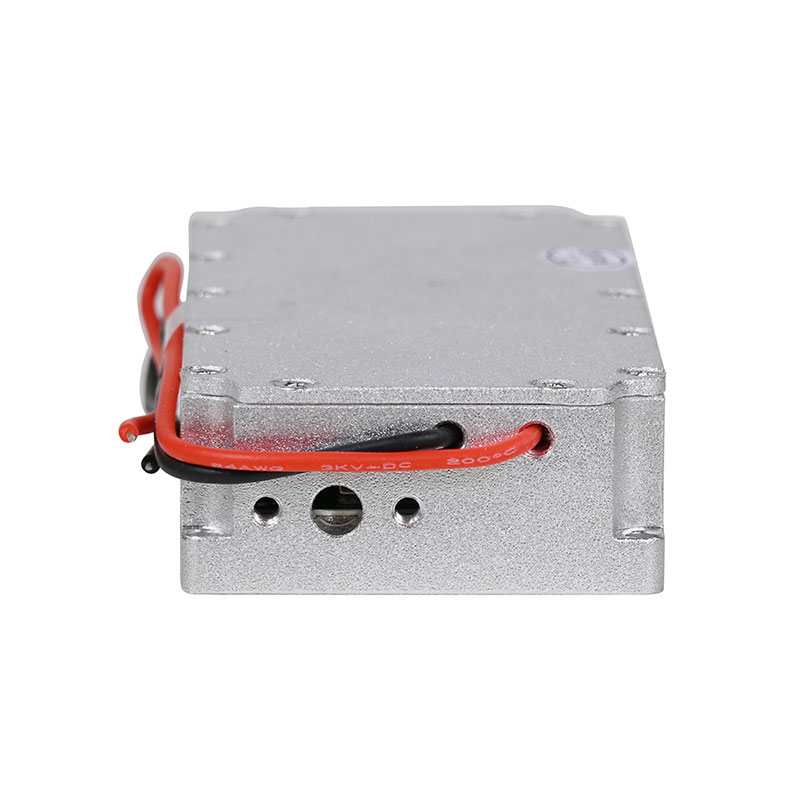

Power supply interface Power cord red positive black negative red positive black negative

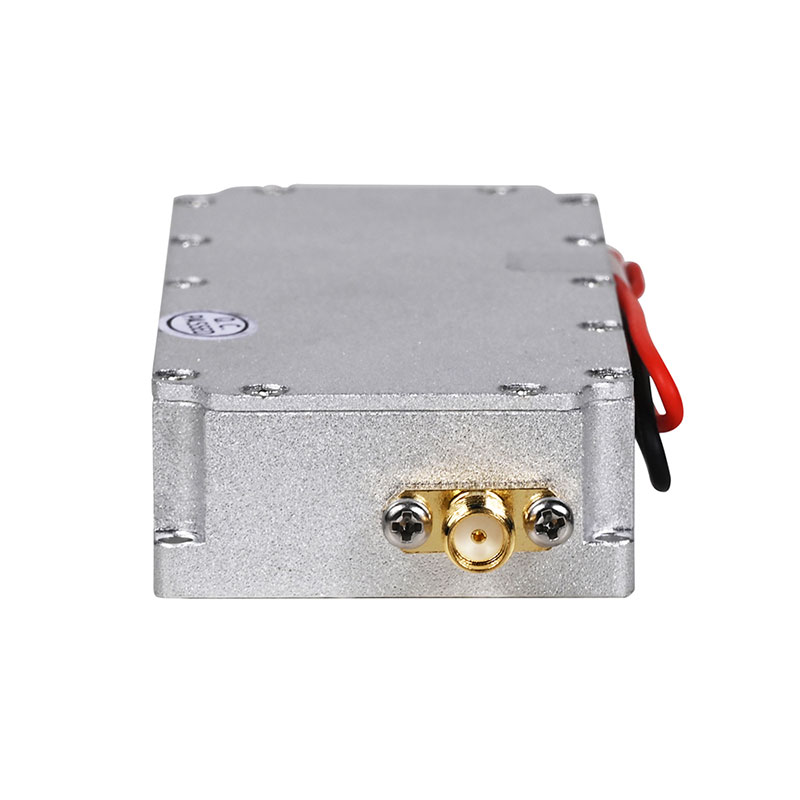

RF output connector SMA SMA external screw female seat
Electric current ≤1 A
Size 25.6*111.7*17 mm
Weight 0.14 Kg

FZX 10W 5.8GHz RF Module Feature And Application

The primary function of a drone countermeasure RF module (Radio Frequency module) is to disrupt the communication and navigation systems of drones by emitting specific radio frequencies, thereby preventing their normal operation. These modules, commonly integrated into drone countermeasure systems, play crucial roles in:

1. **Communication Interference**: Transmitting on drone control frequencies, the RF module disrupts the communication link between the drone and its operator, potentially causing the drone to lose control and trigger safety measures.

2. **Navigation Disruption**: By emitting interference signals affecting GPS reception, the RF module can disrupt the drone's navigation system, leading to inaccuracies in positioning and limitations in flight capabilities.

3. **Forced Landing or Return**: Through disruption of communication and navigation, the RF module can prompt the drone to execute predetermined safety procedures, such as landing immediately or returning to the home point.

4. **Preventing Unauthorized Activities**: In sensitive areas or special events, the RF module acts as a deterrent against unauthorized drone surveillance, filming, or payload delivery, enhancing privacy and security.

5. **Protection of Critical Infrastructure**: Deploying RF modules around military bases, government facilities, airports, and other critical infrastructure safeguards them from drone incursions, reducing security risks.

6. **Ensuring Airspace Safety**: During public gatherings or emergencies, the RF module upholds airspace safety by thwarting drone interference with aviation traffic or rescue efforts.

In essence, the drone countermeasure RF module disrupts drone operations by emitting targeted radio frequencies, enforcing safety measures, and safeguarding designated areas from potential threats posed by drones.
